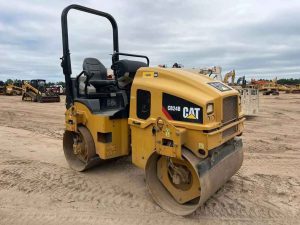

OROPS, 47″ DRUMS, WATER SYSTEM (HRS SHOW 709) S/N CATCB24BC2X401267
Engine
- Model: Cat C1.5
- Gross Power: 36.2 hp (27 kW)
Weights
- Operating Weight: 6,003 lbs (2,723 kg)
- Maximum Weight at Front Drum: 2,857 lbs (1,296 kg)
- Maximum Weight at Rear Drum: 3,147 lbs (1,427 kg)
Performance
- Standard Compaction Width: 47 in (1,200 mm)
- Drum Diameter: 28 in (711 mm)
- Static Linear Load: 63 lbs/in (11.3 kg/cm)
- Travel Speed – Maximum: 7.5 mph (12 km/h)
- Turning Radius – Inside Drum Edge: 8 ft (2.4 m)
Hydraulics
- Vibratory Frequency: 42/55/63 Hz (2,520/3,300/3,780 vpm)
- Centrifugal Force per Drum – Maximum: 7,374 lbs (3,345 kg)
- Centrifugal Force per Drum – Minimum: 3,282 lbs (1,489 kg)
- Nominal Amplitude – High: 0.02 in (0.5 mm)
Dimensions
- Overall Length: 101 in (2,565 mm)
- Overall Width: 52 in (1,320 mm)
- Wheelbase: 71 in (1,803 mm)
- Ground Clearance: 11 in (279 mm)
- Maximum Machine Height: 106 in (2,692 mm)
Capacities
- Fuel Tank Capacity: 17 gal (64 L)
- Water Spray Tank Capacity: 62 gal (235 L)
