Cab, A/C, meter reads 4052 hours, 72 inch GP bucket.

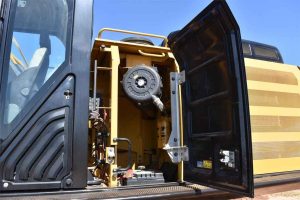

Engine
- Model: Cat C9.3 ACERT
- Net Power: 303 hp (226 kW)
- Gross Power: 322 hp (240 kW)
- Displacement: 568 in³ (9.3 L)
- Fuel Tank Capacity: 164 gal (620 L)
Weights
- Operating Weight: 88,400 lbs (40,100 kg)
Performance
- Maximum Digging Depth: 26 ft 10 in (8.18 m)
- Maximum Reach at Ground Level: 38 ft 5 in (11.71 m)
- Bucket Digging Force: 50,000 lbf (222 kN)
- Stick Digging Force: 35,000 lbf (156 kN)
- Swing Speed: 8.9 rpm
- Maximum Travel Speed: 3 mph (4.8 km/h)
Hydraulics
- Main System Maximum Flow: 151 gal/min (571 L/min)
- Maximum Pressure – Equipment: 5,076 psi (35,000 kPa)
- Maximum Pressure – Travel: 5,076 psi (35,000 kPa)
- Maximum Pressure – Swing: 4,061 psi (28,000 kPa)
Dimensions
- Transport Length: 36 ft 7 in (11.15 m)
- Transport Width: 11 ft 2 in (3.4 m)
- Transport Height: 12 ft (3.65 m)
- Tail Swing Radius: 11 ft 4 in (3.45 m)
- Ground Clearance: 1 ft 7 in (0.47 m)
