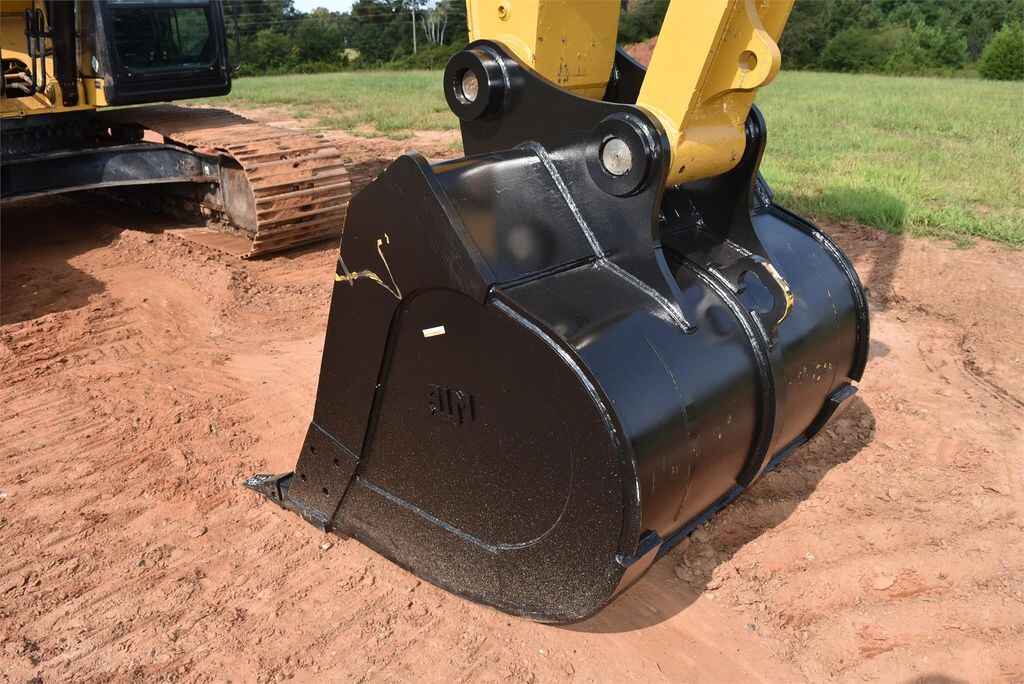

Cab, A/C, meter reads 4231 hours, back up camera, NEW 54 inch GP bucket.
Engine
- Model: Cat® C7.1 ACERT™
- Net Power (ISO 9249): 204 kW (273 hp)
- Gross Power (ISO 14396): 205 kW (275 hp)
- Displacement: 7.01 L (428 in³)
- Emissions: Meets U.S. EPA Tier 4 Final and EU Stage V standards
Weights
- Operating Weight: 31,000 kg (68,400 lb)
Performance
- Maximum Digging Depth: 7,240 mm (23 ft 9 in)
- Maximum Reach at Ground Level: 10,680 mm (35 ft 1 in)
- Bucket Digging Force (ISO): 179 kN (40,250 lbf)
- Stick Digging Force (ISO): 126 kN (28,330 lbf)
- Maximum Travel Speed: 5.1 km/h (3.2 mph)
Hydraulics
- Main System Maximum Flow: 560 L/min (148 gal/min)
- Maximum Pressure – Equipment: 35,000 kPa (5,076 psi)
- Maximum Pressure – Travel: 35,000 kPa (5,076 psi)
- Maximum Pressure – Swing: 29,800 kPa (4,320 psi)
Dimensions
- Transport Length: 10,420 mm (34 ft 2 in)
- Transport Width: 3,390 mm (11 ft 1 in)
- Transport Height: 3,060 mm (10 ft 0 in)
- Tail Swing Radius: 3,130 mm (10 ft 3 in)
- Ground Clearance: 490 mm (1 ft 7 in)
Service Refill Capacities
- Fuel Tank Capacity: 474 L (125.2 gal)
- Cooling System: 25 L (6.6 gal)
- Engine Oil: 25 L (6.6 gal)
- Hydraulic System (including tank): 310 L (81.9 gal)
- Hydraulic Tank: 147 L (38.8 gal)
- DEF Tank: 41 L (10.8 gal)
