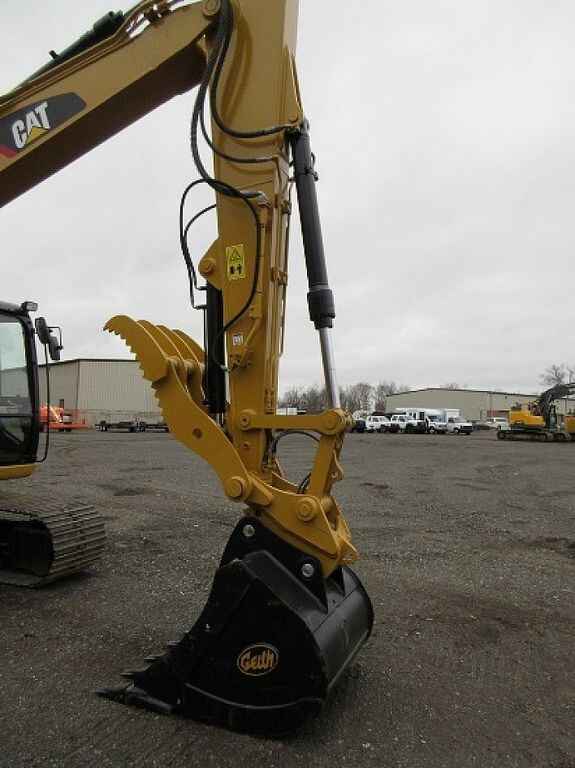

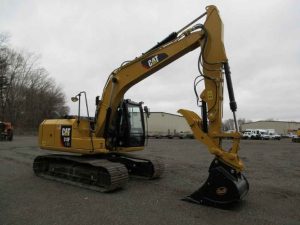

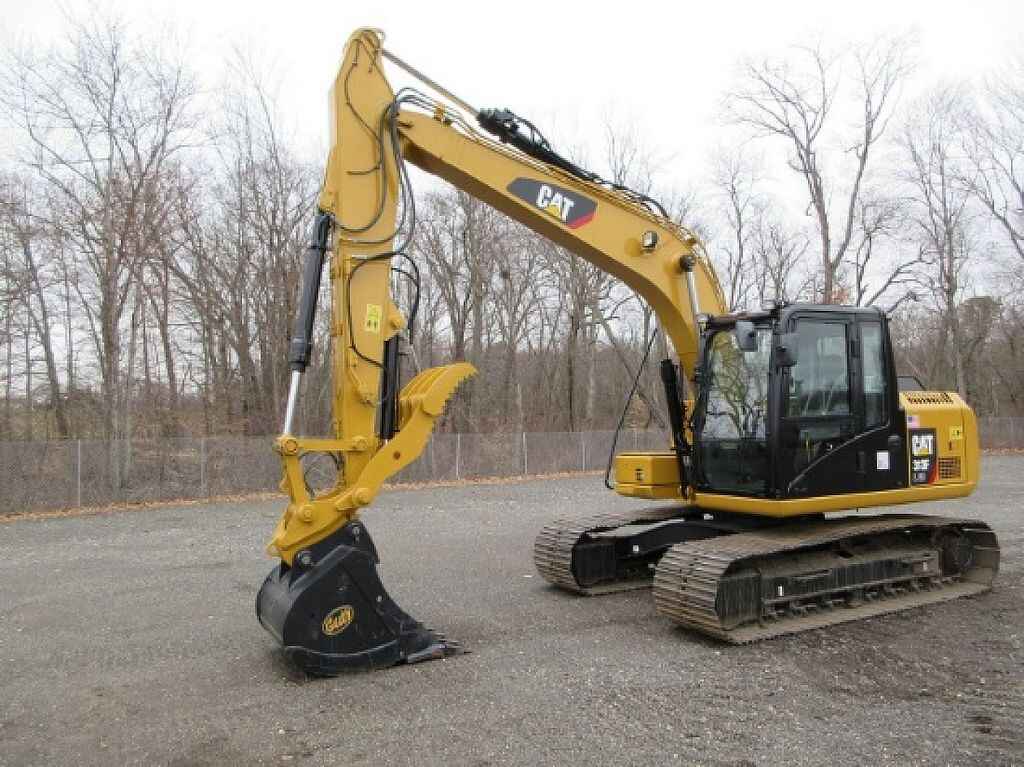

4 cyl Caterpillar turbo diesel, cab with heat, A/C, stereo, auto idle, 2 speed travel, side and rearview cameras, 28″ track pads, aux hyd, hyd thumb, 9′ 10″ stick, hyd coupler, bucket with teeth, meter reads 3444 hours, S/N CAT0313FLGJD10354

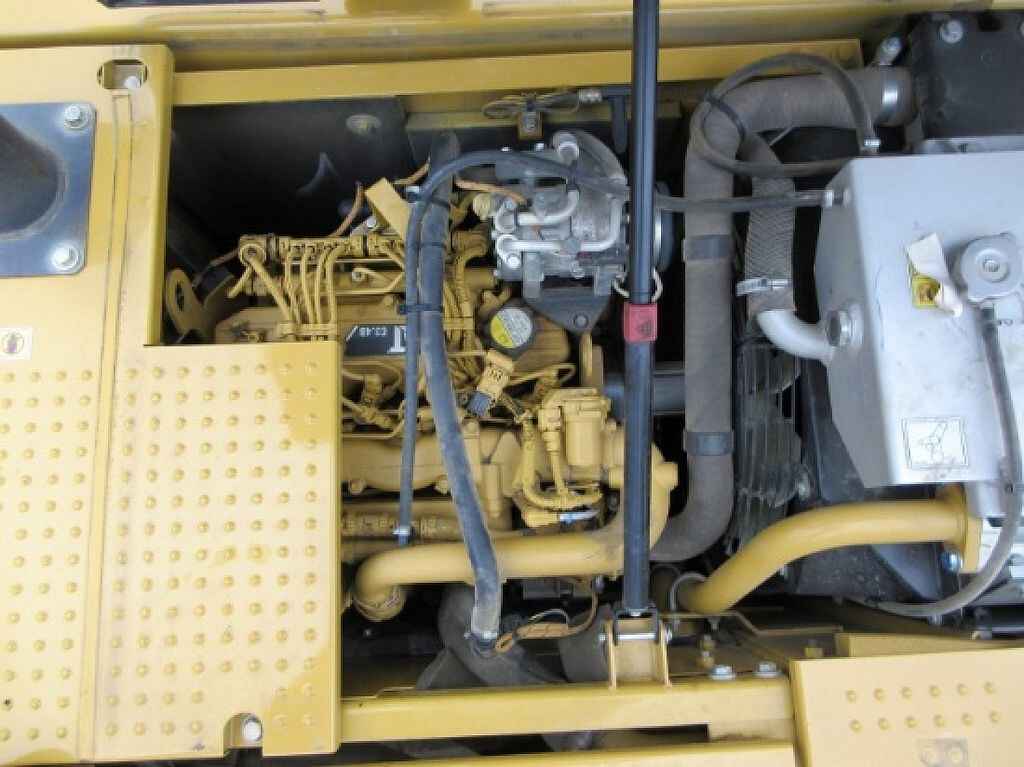

Engine
- Model: Cat C3.4B
- Gross Power: 74 hp (55 kW)
- Net Power: 70 hp (52 kW)
- Displacement: 207 in³ (3.4 L)
- Engine RPM (Operation): 1,700 rpm
- Engine RPM (Travel): 1,800 rpm
Weights
- Operating Weight: 29,300 lbs (13,290 kg)
- Maximum Operating Weight: 32,200 lbs (14,600 kg)
- Minimum Operating Weight: 29,300 lbs (13,290 kg)
Performance
- Maximum Travel Speed: 3.4 mph (5.5 km/h)
- Drawbar Pull: 24,707 lbs (11,210 kg)
- Swing Speed: 11.7 rpm
- Swing Torque: 22,791 lb-ft (30,900 Nm)
Hydraulics
- Main System Maximum Flow: 63.4 gal/min (240 L/min)
- Maximum Pressure (Equipment): 4,424 psi (30,500 kPa)
- Maximum Pressure (Travel): 4,424 psi (30,500 kPa)
- Maximum Pressure (Swing): 3,336 psi (23,000 kPa)
Dimensions
- Ground Clearance: 1.45 ft (0.44 m)
- Height to Top of Cab: 9.06 ft (2.76 m)
- Length of Track on Ground: 12.31 ft (3.75 m)
- Tail Swing Radius: 7.16 ft (2.18 m)
- Counterweight Clearance: 2.89 ft (0.88 m)
Service Refill Capacities
- Fuel Tank Capacity: 66.1 gal (250 L)
- Cooling System Fluid Capacity: 4.8 gal (18 L)
- Hydraulic System Fluid Capacity: 43.4 gal (164 L)
- Engine Oil Capacity: 2.2 gal (8.5 L)
- Swing Drive Fluid Capacity: 0.8 gal (3 L)
