ALL ORIGINAL YELLOW PAINT & DECALS!
Machine was just fully cleaned, greased, serviced and looked over. Photos just taken. Video available. Delivery Available!
– Only 928 hours!
– Enclosed HEAT/AC/RADIO
– Rear Camera
– Hydraulic Thumb
– Hydraulic Angle Blade
– 2 speed
– 24” & 36” buckets
– Manual Quick Coupler
– No leaks, No smoke, No issues
– 46 Hp
– 12k Lbs
Machine is TIGHT & READY TO WORK
Engine
- Model: Cat C2.4 DI
- Net Power: 44.1 hp (32.9 kW)
- Gross Power: 45.7 hp (34.1 kW)
- Displacement: 146 in³ (2.4 L)
- Fuel Capacity: 16.6 gal (63 L)
Weights
- Operating Weight (Canopy, Standard Stick): 11,503 lbs (5,217 kg)
- Operating Weight (Canopy, Long Stick): 11,596 lbs (5,259 kg)
- Operating Weight (Cab, Standard Stick): 11,863 lbs (5,380 kg)
- Operating Weight (Cab, Long Stick): 11,958 lbs (5,423 kg)
Performance
- Maximum Dig Depth (Standard Stick): 11 ft 5 in (3,470 mm)
- Maximum Dig Depth (Long Stick): 12 ft 8 in (3,870 mm)
- Maximum Reach at Ground Level (Standard Stick): 18 ft 6 in (5,630 mm)
- Maximum Reach at Ground Level (Long Stick): 19 ft 9 in (6,020 mm)
- Bucket Digging Force: 11,445 lbf (50.9 kN)
- Stick Digging Force (Standard): 6,500 lbf (28.9 kN)
- Stick Digging Force (Long): 5,575 lbf (24.8 kN)
Hydraulics
- Main Pump Flow: 39.6 gal/min (150 L/min)
- Auxiliary Circuit – Primary: 21.1 gal/min (80 L/min)
- Auxiliary Circuit – Secondary: 6.6 gal/min (25 L/min)
- Operating Pressure – Equipment: 3,553 psi (245 bar)
- Operating Pressure – Travel: 3,553 psi (245 bar)
- Operating Pressure – Swing: 3,132 psi (216 bar)
Dimensions
- Overall Length (Standard Stick): 17 ft 6 in (5,330 mm)
- Overall Length (Long Stick): 17 ft 11 in (5,460 mm)
- Overall Width: 6 ft 6 in (1,980 mm)
- Overall Height: 8 ft 4 in (2,550 mm)
- Tail Swing Radius: 3 ft 8 in (1,130 mm)
- Ground Clearance: 1 ft 3 in (375 mm)
Travel System
- Travel Speed – High: 2.8 mph (4.5 km/h)
- Travel Speed – Low: 1.7 mph (2.8 km/h)
- Maximum Traction Force – High Speed: 6,025 lbf (26.8 kN)
- Maximum Traction Force – Low Speed: 10,746 lbf (47.8 kN)
- Ground Pressure (Canopy): 4.5 psi (31 kPa)
- Ground Pressure (Cab): 4.6 psi (31.9 kPa)

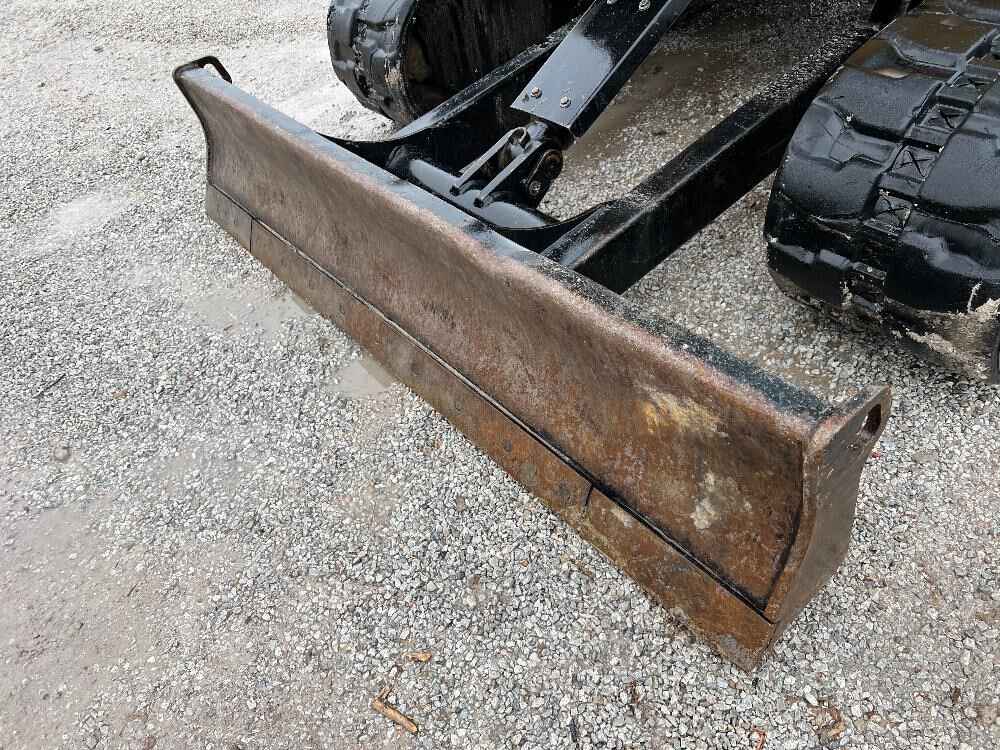

Blade
- Width: 6 ft 6 in (1,980 mm)
- Height: 1 ft 3 in (375 mm)
- Dig Depth: 1 ft 10 in (555 mm)
- Lift Height: 1 ft 4 in (405 mm)
