PRICE FIRM NO TAX OR FEES
6M/1500Hr FULL Warranty!
Machine was just fully cleaned, greased, serviced and looked over. Photos just taken. Shipping Available!
– 1,824 Well Kept hours
– Enclosed HEAT/AC/RADIO
– Hydraulic Thumb
– Manual Quick Coupler
– 2 speed
– 24″ and 36” Tooth bucket
– 46 Hp
– 12k Lbs
Machine is READY TO WORK

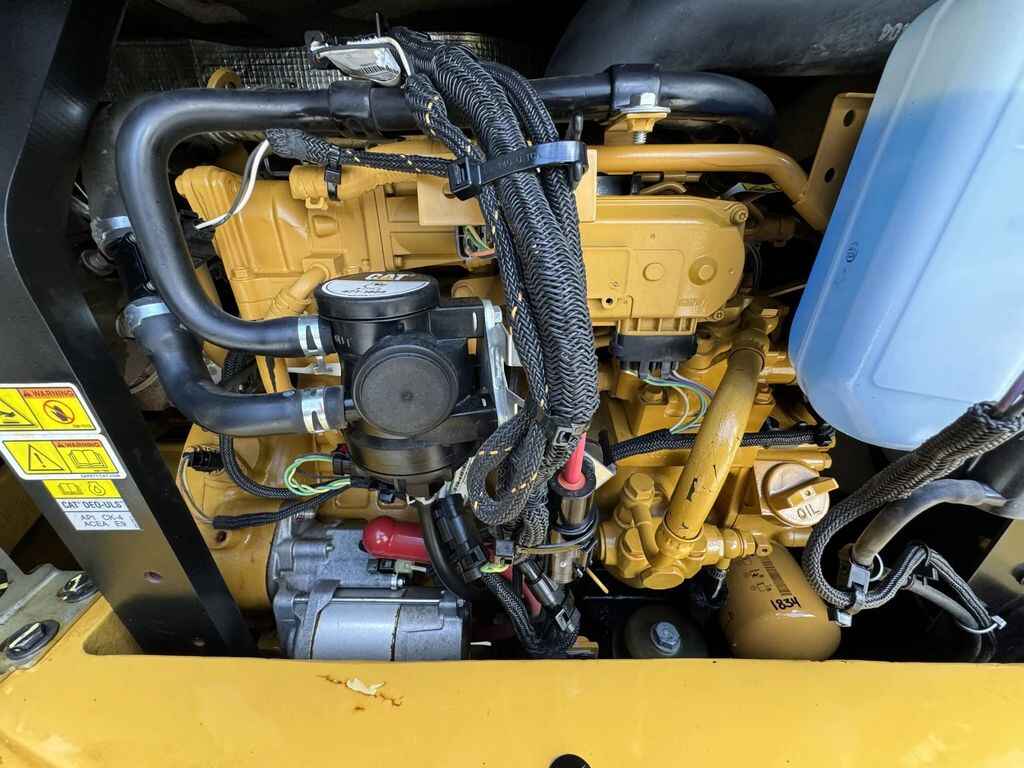

Engine
- Model: Cat® C2.4
- Net Power: 44.2 hp (32.9 kW)
- Gross Power: 45.7 hp (34.1 kW)
- Displacement: 146 in³ (2.4 L)
- Emissions: Meets U.S. EPA Tier 4 Interim/EU Stage IIIA emission standards
Weights
- Operating Weight with Cab: 11,958 lbs (5,423 kg)
- Operating Weight with Canopy: 11,596 lbs (5,259 kg)
- Note: Weight includes rubber tracks, bucket, operator, full fuel, and auxiliary lines
Performance
- Maximum Dig Depth: 12 ft 10 in (3,870 mm)
- Maximum Reach at Ground Level: 20 ft 4 in (6,200 mm)
- Bucket Digging Force: 11,443 lbf (50.9 kN)
- Stick Digging Force (Standard): 6,497 lbf (28.9 kN)
- Stick Digging Force (Long): 5,575 lbf (24.8 kN)
Hydraulics
- Main System – Maximum Flow: 43.1 gal/min (163 L/min)
- Auxiliary Circuit – Primary: 21.1 gal/min (80 L/min)
- Auxiliary Circuit – Secondary: 6.6 gal/min (25 L/min)
- Operating Pressure – Equipment: 3,553 psi (24.5 MPa)
- Operating Pressure – Travel: 3,553 psi (24.5 MPa)
- Operating Pressure – Swing: 3,132 psi (21.6 MPa)
Dimensions
- Maximum Reach: 20 ft 4 in (6,200 mm)
- Maximum Dig Height: 19 ft 8 in (5,990 mm)
- Maximum Dump Height: 13 ft 9 in (4,190 mm)
- Maximum Vertical Wall Dig Depth: 8 ft 4 in (2,540 mm)
- Tail Swing Radius: 3 ft 1 in (950 mm)
- Ground Clearance: 1 ft 1 in (335 mm)
Travel System
- Travel Speed – High: 2.8 mph (4.5 km/h)
- Travel Speed – Low: 1.7 mph (2.8 km/h)
- Maximum Traction Force – High Speed: 6,025 lbf (26.8 kN)
- Maximum Traction Force – Low Speed: 10,745 lbf (47.8 kN)
- Gradeability – Maximum: 30°
Service Refill Capacities
- Fuel Tank: 16.6 gal (63 L)
- Hydraulic Tank: 18 gal (68 L)
- Hydraulic System: 20.6 gal (78 L)
- Engine Oil: 2.5 gal (9.5 L)
- Cooling System: 2.8 gal (10.5 L)
