PRICE FIRM NO TAX OR FEES

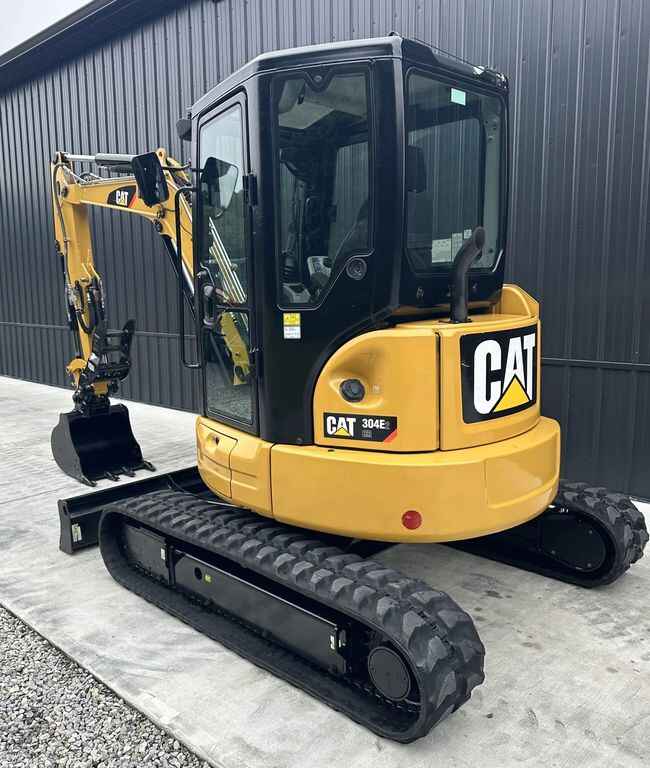

Machine is in excellent condition. Very lightly used and well kept. Just fully cleaned, greased, serviced & looked over. All original body paint. Under tracks, blade and bucket touched up.
– ONLY 543 hours
– Enclosed HEAT/AC/RADIO
– Hydraulic thumb
– 18” & 24” buckets
– 2 Speed
– 42HP
– 9,590 Lbs
– Quick coupler
– NO LEAKS NO SMOKE NO ISSUES
No issues & READY TO WORK!
Engine
- Model: Cat C2.4
- Net Power: 40.2 hp (30 kW)
- Gross Power: 41.8 hp (31.2 kW)
- Displacement: 146 in³ (2.4 L)
- Emissions: Meets U.S. EPA Tier 4 Final/EU Stage IIIA standards
Weights
- Operating Weight with Canopy: 8,906 lbs (4,039 kg)
- Operating Weight with Cab: 8,996 lbs (4,080 kg)
Performance
- Maximum Digging Depth (Standard Stick): 10 ft 3 in (3,130 mm)
- Maximum Digging Depth (Long Stick): 11 ft 3 in (3,430 mm)
- Maximum Reach at Ground Level (Standard Stick): 17 ft 1 in (5,220 mm)
- Maximum Reach at Ground Level (Long Stick): 17 ft 11 in (5,470 mm)
- Bucket Digging Force: 8,498 lbf (37.8 kN)
- Stick Digging Force (Standard Stick): 4,856 lbf (21.6 kN)
- Stick Digging Force (Long Stick): 4,384 lbf (19.5 kN)
Hydraulics
- Type: Load Sensing Hydraulics with Variable Displacement Piston Pump
- Pump Flow at 2,200 rpm: 26.4 gal/min (100 L/min)
- Operating Pressure – Equipment: 3,553 psi (245 bar)
- Operating Pressure – Travel: 3,553 psi (245 bar)
- Operating Pressure – Swing: 3,132 psi (216 bar)
- Auxiliary Circuit – Primary (Flow at Pump): 18.5 gal/min (70 L/min)
- Auxiliary Circuit – Secondary (Flow at Pump): 6.6 gal/min (25 L/min)
Dimensions
- Width: 6 ft 5 in (1,950 mm)
- Height: 8 ft 2 in (2,500 mm)
- Tail Swing Radius: 3 ft 2 in (975 mm)
- Ground Clearance: 1 ft 1 in (335 mm)
Travel System
- Travel Speed – High: 3.2 mph (5.2 km/h)
- Travel Speed – Low: 2.1 mph (3.3 km/h)
- Maximum Traction Force – High Speed: 3,799 lbf (16.9 kN)
- Maximum Traction Force – Low Speed: 6,969 lbf (31.0 kN)
- Ground Pressure (Canopy): 4.1 psi (28.1 kPa)
- Ground Pressure (Cab): 4.3 psi (29.5 kPa)
Service Refill Capacities
- Cooling System: 1.5 gal (5.5 L)
- Engine Oil: 2.5 gal (9.5 L)
- Fuel Tank: 12.2 gal (46 L)
- Hydraulic Tank: 11.2 gal (42.3 L)
- Hydraulic System: 17.2 gal (65 L)
