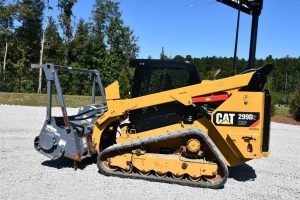

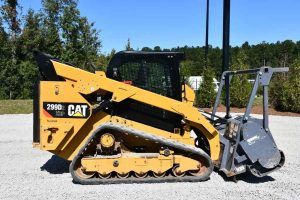

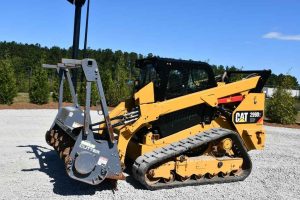

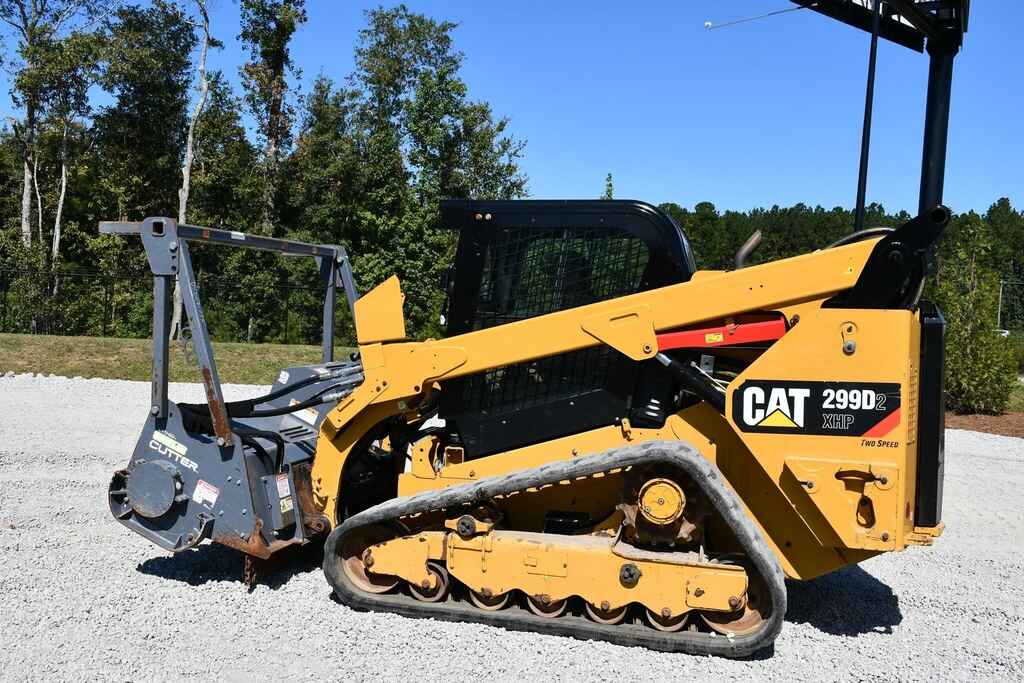

Enclosed Cab, Air Conditioner, Air Ride Seat, meter reads 2135 hours, Joystick Steering, Tier 4, 2017 US EPA Label, Requires Diesel Exhaust Fluid, 16 in Track Belts, 9 Pin Electric Kit, Hydraulic Coupler, 79 in Bucket, Mulcher, Counterweight Kit.
Machine Dimensions
- Ground Clearance: 0.8 ft
- Bucket Pin Height – Carry Position: 7.1 in
- Bucket Pin Height – Maximum Lift: 10.53 ft
- Bucket Pin Reach – Maximum Lift: 19.4 in
- Clearance At Maximum Lift And Dump: 94.5 in
- Departure Angle: 33 degrees
- Height – Top Of Cab: 6.97 ft
- Length – Track On Ground: 69.6 in
- Length – With Bucket On Ground: 154.7 in
- Length – Without Bucket: 125.5 in
- Maximum Dump Angle: 54 degrees
- Maximum Overall Height: 158.7 in
- Maximum Reach – With Arms Parallel To Ground: 51.9 in
- Overall Length – Track: 89.4 in
- Rack Back Angle – Maximum Height: 81 degrees
- Reach – Maximum Lift/Dump: 33.6 in
- Roll Back Angle: 25 degrees
- Turning Radius From Center – Bucket (Racked): 91.1 in
- Turning Radius From Center – Coupler: 58.1 in
- Turning Radius From Center – Machine Rear: 74 in
Note
Operating Weight, Operating Specifications, and Dimensions are based on the following conditions:
- 75 kg (165 lb) operator
- All fluids
- Two-speed system
- Ride control
- Enclosed cab with glass door and side windows
- Air conditioning
- Air ride seat
- Advanced display
- Rearview camera
- 1,000 CCA battery
- Dual direction self-leveling
- 1981 mm (78 in) dirt bucket
- 400 mm (15.7 in) tracks
- Triple flange front/rear idlers
- No optional counterweights
- Manual quick coupler (unless otherwise noted)
Vehicle Width (400 Mm / 15.7 In Tracks)
- Width: 76 in
Engine Specifications
- Net Power: 106 hp
- Displacement: 232 cu in
- Bore: 3.9 in
- Stroke: 4.7 in
- Net Power – ISO 9249: 107 hp
- Gross Power – SAE J1995: 110 hp
- Engine Model: Cat C3.8 DIT (turbo)
- Net Power – SAE 1349: 106 hp
- Peak Torque – 1,500 RPM – SAE J1995: 276 lb-ft
Operational Specifications
- Operating Weight: 11,608 lb
Power Train Specifications
- Travel Speed – Forward Or Reverse (One Speed): 5.2 mph
- Travel Speed – Forward Or Reverse (Two Speed): 8.4 mph
