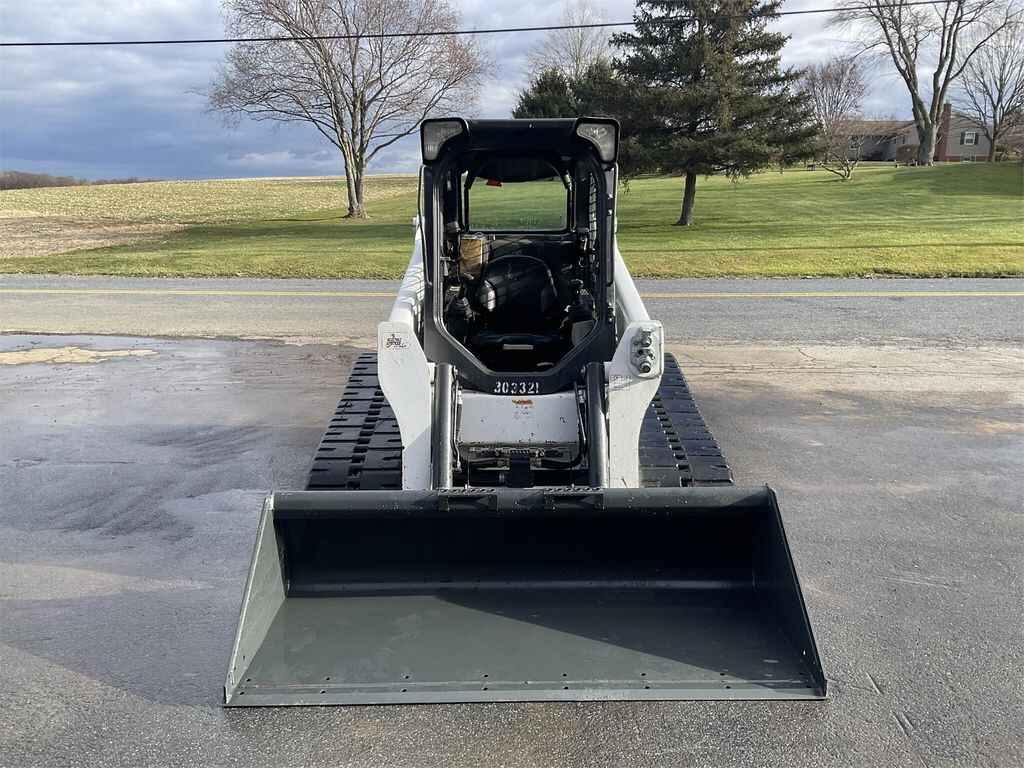

2018 Bobcat T630 Track Skid Steer Loader ( ONLY 1,380 Hours and SJC Joystick Controls!)
– 74 HP Engine
– 2,300 LB Lift Capacity / 8,750 LB Operating Weight
– OPEN ROPS Canopy
– ONLY 1,380 Hours!
– SJC Joystick Controls
– Single Speed Travel
– Standard Flow Auxiliary Hydraulics – 23 Gallon Per Minute Flow
– Universal Bucket Coupler
– Clean, Low Hour Skid Steer!
Engine
- Model: Kubota V3307-DI-T
- Gross Power: 74.3 hp (55.4 kW)
- Net Power: 70.3 hp (52.4 kW)
- Displacement: 203.3 in³ (3.3 L)
- Fuel Capacity: 27.3 gal (103.3 L)
Weights
- Operating Weight: 8,555 lbs (3,880 kg)
Performance
- Rated Operating Capacity (35% of Tipping Load): 2,230 lbs (1,011.5 kg)
- Rated Operating Capacity (50% of Tipping Load): 3,000 lbs (1,360.8 kg)
- Tipping Load: 6,371 lbs (2,889.8 kg)
- Lift Breakout Force: 6,200 lbs (2,812.3 kg)
- Tilt Breakout Force: 6,250 lbs (2,835.0 kg)
- Push Force: 5,900 lbs (2,676.0 kg)
- Maximum Travel Speed: 6.6 mph (10.6 km/h)
- Optional High Speed: 10.7 mph (17.2 km/h)
- Ground Pressure: 5.5 psi (37.9 kPa)
Hydraulics
- Standard Flow: 23.0 gal/min (87.1 L/min)
- Optional High Flow: 30.5 gal/min (115.5 L/min)
- System Relief Pressure: 3,550 psi (24.5 MPa)
Dimensions
- Height: 81.3 in (206.5 cm)
- Bucket Hinge Pin Height: 121.0 in (307.3 cm)
- Width: 72.9 in (185.1 cm)
- Length with Standard Bucket: 136.8 in (347.4 cm)
- Dump Height: 93.2 in (236.7 cm)
- Dump Reach: 24.1 in (61.2 cm)
- Ground Clearance: 9.2 in (23.3 cm)
- Dump Angle: 42°
- Rollback Angle: 31°
- Departure Angle: 31°
Undercarriage
- Track Width: 12.6 in (32.0 cm)
- Track Length: 108.4 in (275.3 cm)
- Ground Contact Length: 59.0 in (149.9 cm)
