3 cyl Kubota diesel, cab with heat, aux hyd, aux electrical connector, GP bucket with BOCE, meter reads 866 hours, S/N B38V15528
Engine
- Model: Kubota D1005-E4B-BC-3
- Gross Power: 23.5 hp (17.5 kW)
- Displacement: 61 in³ (1.0 L)
- Fuel Capacity: 6.5 gal (24.6 L)
Weights
- Operating Weight: 2,795 lbs (1,268 kg)
Performance
- Rated Operating Capacity: 700 lbs (318 kg)
- Tipping Load: 1,512 lbs (686 kg)
- Travel Speed: 6.1 mph (9.8 km/h)
Hydraulics
- Auxiliary Std Flow: 9.8 gal/min (37.1 L/min)
- System Relief @ Quick Couplers: 3,000 psi (20.7 MPa)
Dimensions
- Length with Standard Bucket: 8.4 ft (2.55 m)
- Width (with bucket): 3.0 ft (0.91 m)
- Height: 6.0 ft (1.82 m)
- Height to Bucket Hinge Pin: 8.8 ft (2.68 m)
- Wheelbase: 2.4 ft (0.73 m)
- Ground Clearance: 5.5 in (14 cm)
Features

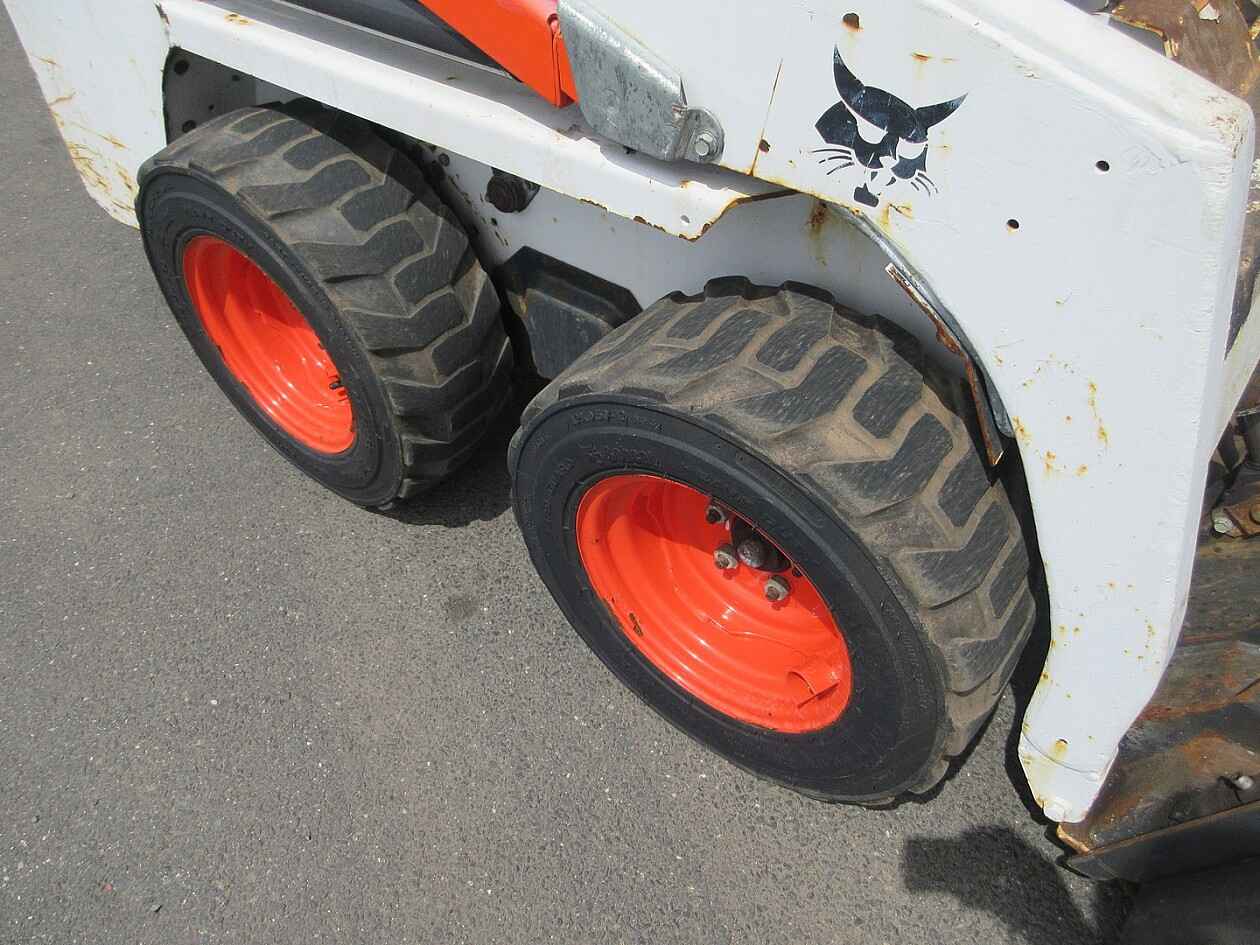

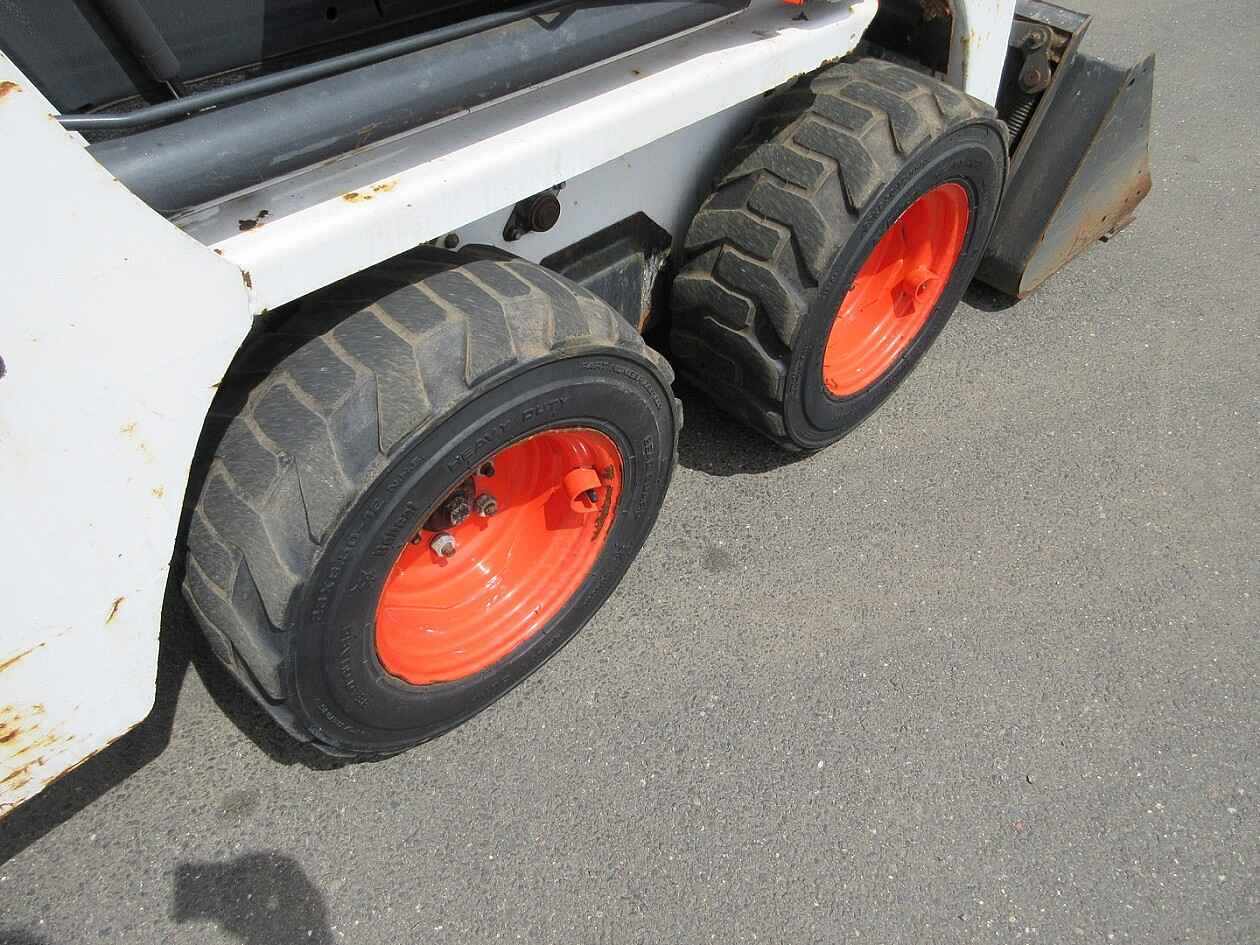

- Standard Tires: 5.7-12
- Joystick Control: Not Applicable
- Operating Lights: Front and Rear

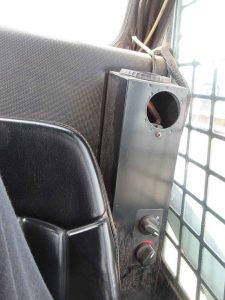

- Operator Cab: Enclosed with Optional Heat
