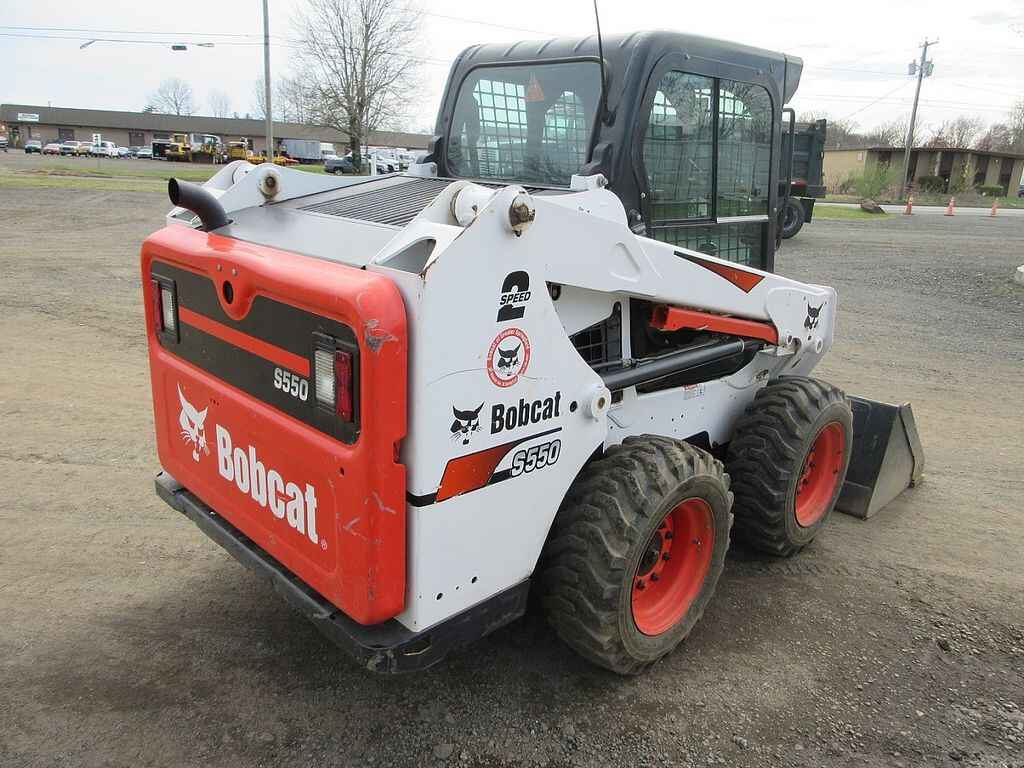

4 cyl turbo diesel, cab with heat, 2 speed travel, aux hyd, Power Bob-Tach, GP bucket with BOCE, meter reads 692 hours, S/N AHGM14629
Engine:
- Engine Model: Bobcat 4-cylinder diesel
- Gross Power: 70 hp (52 kW)
- Net Power: 65 hp (48.5 kW)
- Engine Type: 4-Cylinder, Diesel
- Engine Displacement: 168 cu in (2.75 L)
- Rated Engine Speed: 2,300 rpm
- Fuel Tank Capacity: 24.5 gal (92.8 L)
- Cooling System Capacity: 3.8 gal (14.4 L)
- Hydraulic Tank Capacity: 13.5 gal (51 L)
Dimensions:
- Operating Weight: 7,840 lbs (3,555 kg)
- Length (with bucket): 11.2 ft (3,413 mm)
- Width (with bucket): 5.3 ft (1,616 mm)
- Height to Top of Cab: 6.3 ft (1,915 mm)
- Ground Clearance: 8.0 in (203 mm)
- Width Over Tires: 5.3 ft (1,616 mm)
- Wheelbase: 3.3 ft (1,004 mm)
- Length Without Bucket: 8.3 ft (2,531 mm)
- Height to Bucket Pin: 10.5 ft (3,174 mm)
- Rear Overhang: 4.4 ft (1,336 mm)
Performance:
- Rated Operating Capacity: 1,750 lbs (794 kg)
- Tipping Load: 3,500 lbs (1,588 kg)
- Lift Height: 10.5 ft (3,174 mm)
- Max Reach at Full Lift Height: 3.1 ft (948 mm)
- Max Reach with Bucket: 2.1 ft (635 mm)
- Max Dump Height: 8.4 ft (2,561 mm)
- Dump Angle: 40°
- Bucket Rollback (at ground): 30°
- Rollback at Maximum Lift Height: 92°
- Travel Speed (Low): 5.7 mph (9.2 km/h)
- Travel Speed (High): 11.6 mph (18.7 km/h)
- Drawbar Pull: 4,700 lbs (2,130 kg)
- Hydraulic Flow: 23.5 gal/min (89 L/min)
- Hydraulic Pressure: 3,300 psi (22,950 kPa)
Hydraulic System:
- Auxiliary Hydraulic Flow (Standard): 23.5 gal/min (89 L/min)
- Auxiliary Hydraulic Pressure: 3,300 psi (22,950 kPa)
- Lift Cylinder Bore: 2.5 in (64 mm)
- Tilt Cylinder Bore: 2.5 in (64 mm)
Undercarriage:
- Tire Size: 10-16.5
- Track Width: 12 in (305 mm)
- Ground Pressure: 4.4 psi (30.4 kPa)
- Number of Wheels: 4
- Wheelbase: 3.3 ft (1,004 mm)
Capacities:
- Fuel Tank Capacity: 24.5 gal (92.8 L)
- Hydraulic Reservoir Capacity: 13.5 gal (51 L)
- Hydraulic System Fluid Capacity: 23.5 gal (89 L)
- Engine Oil Capacity: 3.7 qt (3.5 L)
Cab Features:
- ROPS: ISO 3471:2008
- FOPS: ISO 3449:2005 Level II
- Operator Cab: Standard
- Heating System: Optional
- Air Conditioning: Optional
- Joystick Controls: Standard
- Seats: Adjustable
- Cab Mounting: Isolated
Brakes and Safety:
- Brakes: Hydraulic wet disc brakes
- Parking Brake: Automatic
- Safety Features:
- Backup alarm
- Seat belt interlock
- Roll-over protection (ROPS)
Additional Features:
- Lift Arm Path: Vertical
- Auxiliary Hydraulics: Standard
- Engine Shutdown: Optional
- Machine Control System: Optional
