PRICE FIRM NO TAX OR FEES
Machine was just fully serviced, cleaned, greased and looked over. Photos just taken.
– ONLY 822 Hours!
– Heat/AC/Radio
– Long Arm
– Hydraulic Thumb
– 2 Speed
– 24” bucket
– Forestry door cage
– 13,800 Lbs
– 60 Hp
Machine is TIGHT & READY TO WORK!

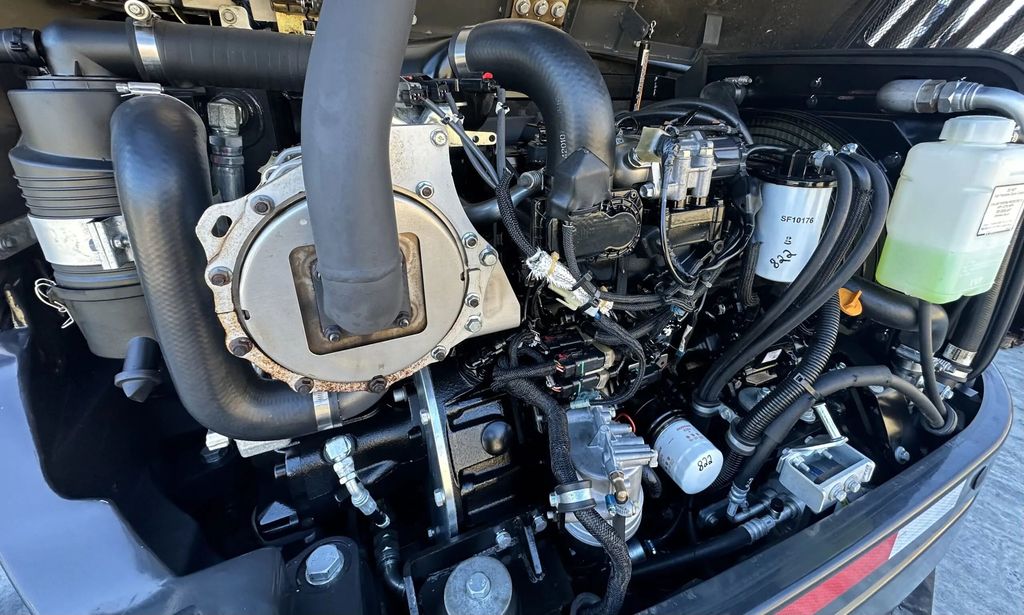

Engine
- Model: Bobcat D24 (Tier 4)
- Net Power: 59.4 HP (44.3 kW)
- Gross Power: 60.1 HP (44.8 kW)
- Displacement: 146.5 in³ (2.4 L)
- Net Torque: 177.5 Nm @ 1,600 RPM
- Fuel Capacity: 27.2 gal (102.9 L)
Weights
- Operating Weight (with Cab): 13,779 lbs (6,250 kg)
- Operating Weight (with Canopy): Not applicable for this model.
Performance
- Dig Depth: 13 ft 6 in (4.11 m)
- Max Dump Height: 14 ft 6 in (4.42 m)
- Max Reach at Ground Level: 21 ft 4 in (6.51 m)
- Maximum Travel Speed: 3.3 mph (5.3 km/h)
- Swing Speed: 9.4 RPM
- Bucket Breakout Force: 9,601 lbf (42.7 kN)
- Stick Breakout Force: 7,414 lbf (33 kN)
Hydraulics
- Main System – Maximum Flow: 24.1 gal/min (91.2 L/min)
- Hydraulic System Pressure (Standard): 3,553 psi (24.5 MPa)
- Auxiliary Hydraulics (Standard Flow): 20.9 gal/min (79 L/min)
Dimensions
- Overall Length: 20 ft 5 in (6.22 m)
- Overall Width: 6 ft 7 in (2.01 m)
- Height to Top of Cab: 8 ft 4 in (2.54 m)
- Tail Swing Radius: 4 ft 10 in (1.47 m)
- Ground Clearance: 1 ft 1 in (0.33 m)
Track System
- Track Width: 15.7 in (400 mm)
- Track Length: 9 ft 1 in (2.77 m)
- Ground Pressure: 4.6 psi (31.8 kPa)
