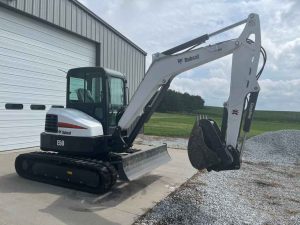

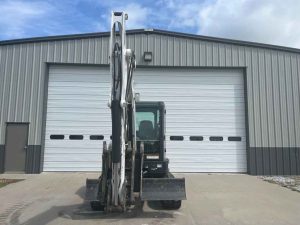

Just completely cleaned, Serviced, greased & looked over. Photos just taken. Very nice machine and well kept.

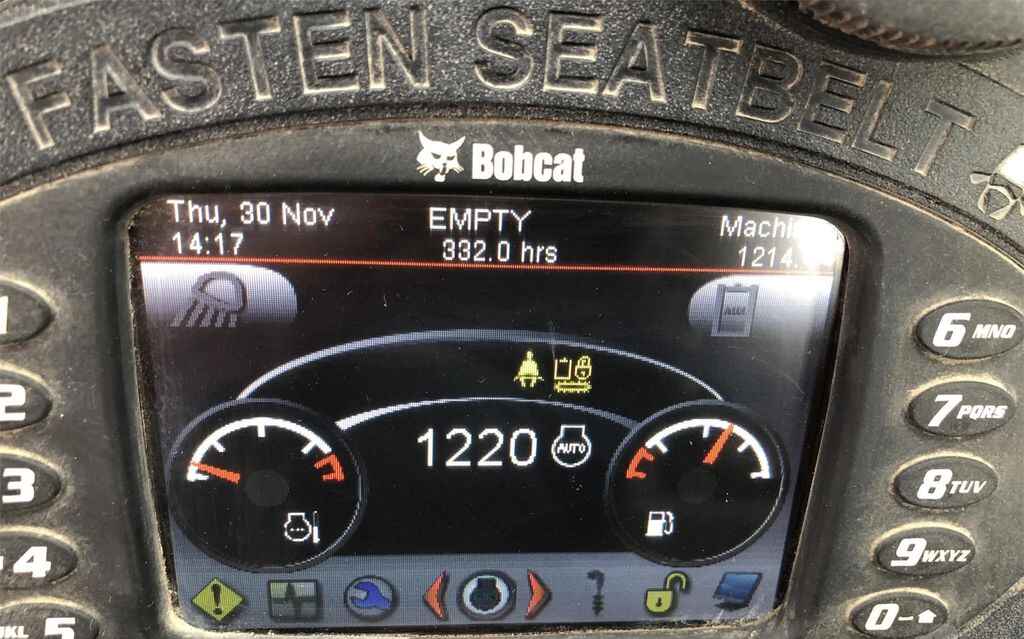

– Only 1,220 Hours

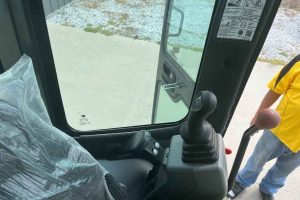

– Enclosed HEAT/AC/RADIO
– Hydraulic Quick attach
– 24” Tooth bucket
– Hydraulic Thumb
– 2 speed
– 50 Hp
– 10,900 Lbs
MACHINE IS READY TO WORK!

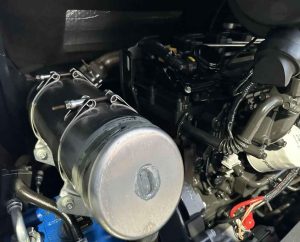

Engine
- Model: Bobcat D24 (Tier 4)
- Net Power: 49.8 hp (37.2 kW)
- Displacement: 146.5 in³ (2.4 L)
- Fuel Capacity: 21.1 gal (80 L)
Weights
- Operating Weight: 10,677 lbs (4,843 kg)
Performance
- Dig Depth: 11.6 ft (3.53 m)
- Max Dump Height: 12.7 ft (3.87 m)
- Max Reach at Ground Level:a 19.5 ft (5.94 m)
- Maximum Travel Speed: 3.1 mph (5.0 km/h)
- Swing Speed: 9.4 RPM
- Bucket Breakout Force: 8,977 lbf (39.9 kN)
- Stick Breakout Force: 6,744 lbf (30.0 kN)

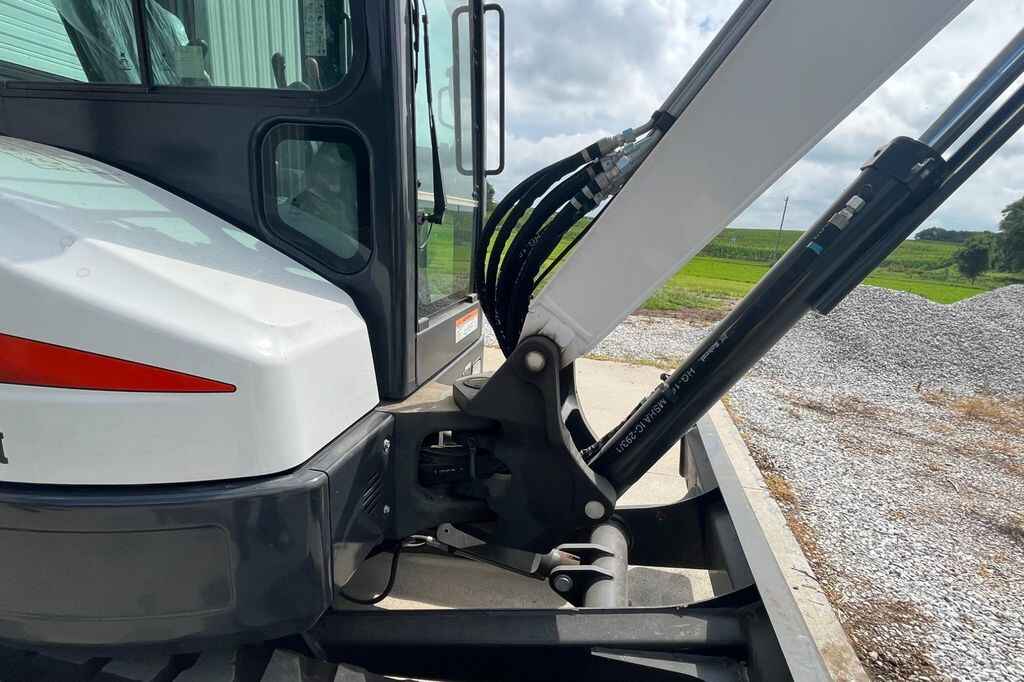

Hydraulics
- Main System – Maximum Flow: 20 gal/min (76 L/min)
- Hydraulic System Pressure (Standard): 3,045 psi (21.0 MPa)
Dimensions
- Overall Length: 18.2 ft (5.55 m)
- Overall Width: 6.44 ft (1.96 m)
- Height to Top of Cab: 8.31 ft (2.53 m)
- Tail Swing Radius: Minimal tail swing with less than an inch of overhang
- Ground Clearance: 1.1 ft (0.33 m)

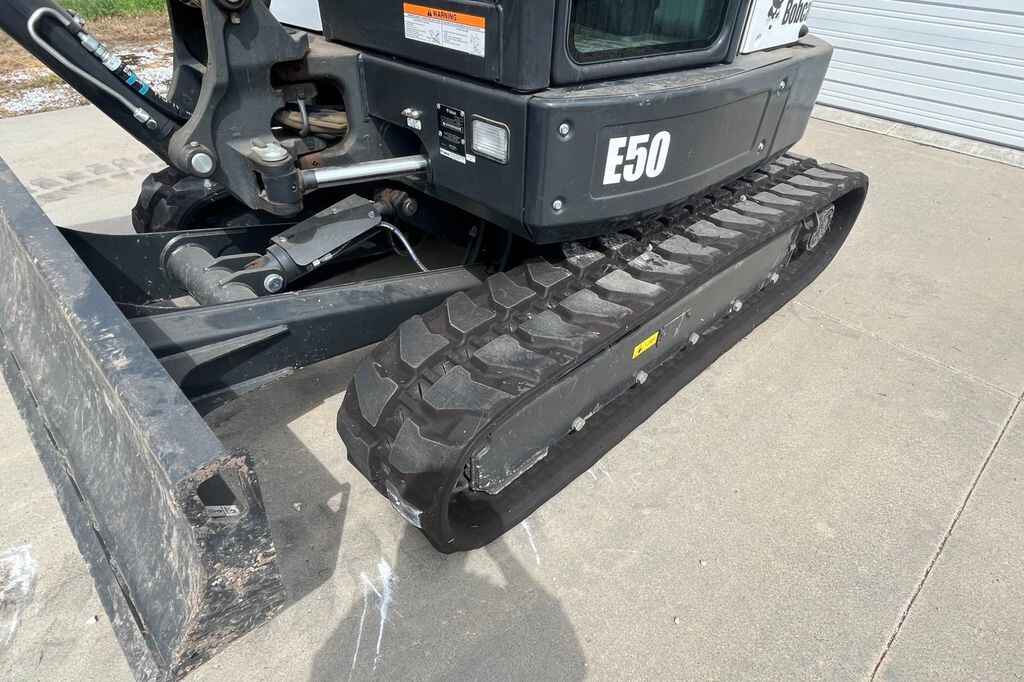

Track System
- Track Width: 15.7 in (400 mm)
- Track Length: 9.1 ft (2.77 m)
