4 cyl Cummins turbo diesel, cab with heat, A/C, 4 x 4 x 4, 10000# capacity, 54′ reach, foam filled tires, 60″ forks, meter reads 6525 hours, S/N 0160081633
Performance
- Maximum Lift Capacity: 10,000 lbs (4,536 kg)
- Maximum Lift Height: 53 ft 2 in (16.21 m)
- Maximum Forward Reach: 38 ft 9 in (11.81 m)
- Lift Capacity at Full Height: 4,000 lbs (1,814 kg)
- Lift Capacity at Maximum Reach: 1,400 lbs (635 kg)
- Frame Leveling: 10 degrees
- Drawbar Pull: 24,500 lbs (11,113 kg)
- Maximum Travel Speed: 20 mph (32.19 km/h)
Dimensions
- Overall Length (to fork face): 21 ft (6.4 m)
- Overall Width: 8 ft 6 in (2.59 m)
- Overall Height: 8 ft 4 in (2.54 m)
- Wheelbase: 10 ft (3.04 m)
- Ground Clearance: 1 ft 6 in (0.46 m)
- Outside Turning Radius: 13 ft 9 in (4.19 m)

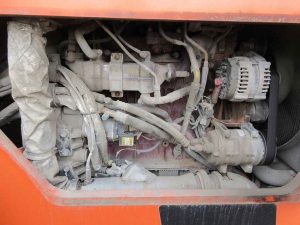

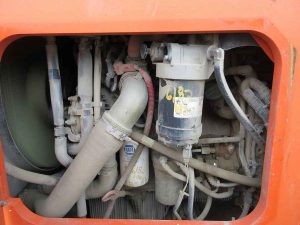

Engine
- Manufacturer: Cummins
- Model: QSF3.8L Tier 4 Final
- Gross Power: 110 hp (82.06 kW)
- Maximum Engine RPM: 1,500 rpm
- Fuel Tank Capacity: 35 gal (132.49 L)
Hydraulic System
- System Type: Variable flow, load-sensing piston pump
- System Pressure: 3,100 psi (21,375 kPa)
- Hydraulic Reservoir Capacity: 60 gal (227 L)
Transmission
- Type: Powershift
- Number of Forward Gears: 4
- Number of Reverse Gears: 3
Axles
- Front Axle: High bias, limited slip
- Rear Axle: Oscillating
Brakes
- Service Brakes: Wet multi-disc
Tires
- Size: 400/75-28
Features
- Single joystick and integrated armrest: Reduces operator fatigue
- Optional air conditioning: Enhances operator comfort
- Stabil-Trak rear axle stabilization system: Increases operator confidence when placing a load
- Optional 74 hp engine: Does not require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
