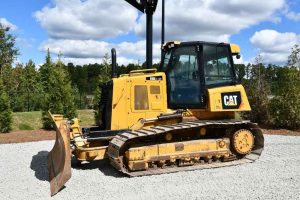

Cab, A/C meter reads 3810 hours, 6-way blade, grade control.
UNDERCARRIAGE
Shoe width
760mm
Shoe height
45mm, 25%
Shoes – any wear in trailing edge
Yes
Rail height
120mm , 10%
Any signs of link failure
No
Average diameter of pins and bushings
54mm, 15%
Sprockets
87mm gape, 13mm tips. 20%
UNDERCARRIAGE – IDLERS
Left side idler
75mm x 33mm x 42mm x 22mm, 30%
Right side ilder
75mm x 33mm x 42mm x 22mm, 30%

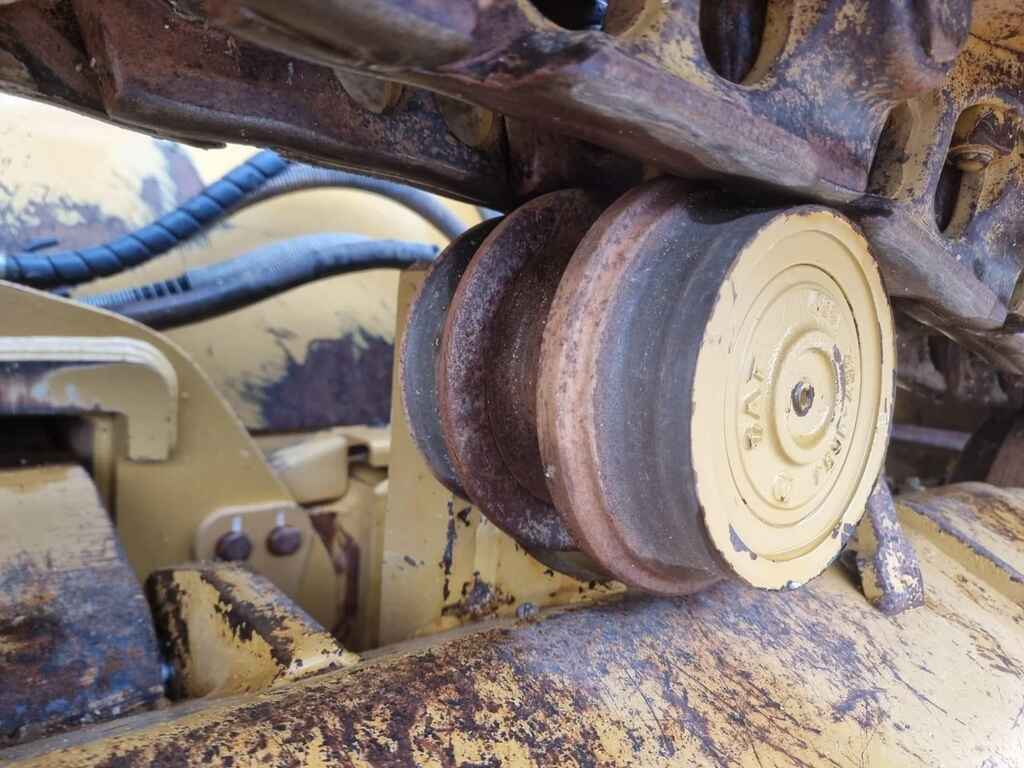

UNDERCARRIAGE – TOP ROLLERS
Left side 1st roller
154mm x 154mm, 30%
Left side 2nd roller
152mm x 152mm, 30%
Right side 1st roller
152mm x 152mm, 30%
Right side 2nd roller
153mm x 155mm, 30%

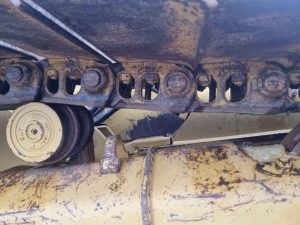

UNDERCARRIAGE – BOTTOM ROLLERS
Roller 1
Visual only, 20%
Roller 2
164mm & 163mm, 20%
Roller 3
161mm & 161mm, 20%
Roller 4
Visual only, 20%
Roller 5
158mm & 160mm, 20%
Roller 6
158mmm & 158mm, 20%
Roller 7
159mm & 158mm, 20%
Roller 8
Visual only, 20%
Engine
- Model: Cat® C4.4 ACERT™ with twin turbo
- Emissions: U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4
- Net Power (Rated): 130 hp (97 kW)
- Displacement: 268.5 in³ (4.4 L)
Weights
- Operating Weight: 30,664 lbs (13,909 kg)
Performance
- Transmission Type: Hydrostatic
- Travel Speed (Forward/Reverse): 0-6.2 mph (0-10 km/h)
- Drawbar Pull: 50,000 lbf (222.4 kN)
Undercarriage
- Track Gauge: 79 in (2000 mm)
- Width of Shoe: 30 in (760 mm)
- Ground Contact Area: 6,912 in² (4.46 m²)
- Ground Pressure: 4.44 psi (30.6 kPa)
Blade
- Blade Type: VPAT (Variable Pitch Angle Tilt)
- Blade Capacity: 4.98 yd³ (3.81 m³)
- Blade Width Over End Bits: 12 ft (3,682 mm)
Dimensions
- Length (with blade): 15.4 ft (4,700 mm)
- Width (over tracks): 9.81 ft (2,990 mm)
- Height: 9.25 ft (2,820 mm)
- Ground Clearance: 1.25 ft (380 mm)
Service Refill Capacities
- Fuel Tank: 69 gal (260 L)
- DEF Tank: 5 gal (19 L)
- Cooling System: 7.9 gal (30 L)
- Engine Crankca
