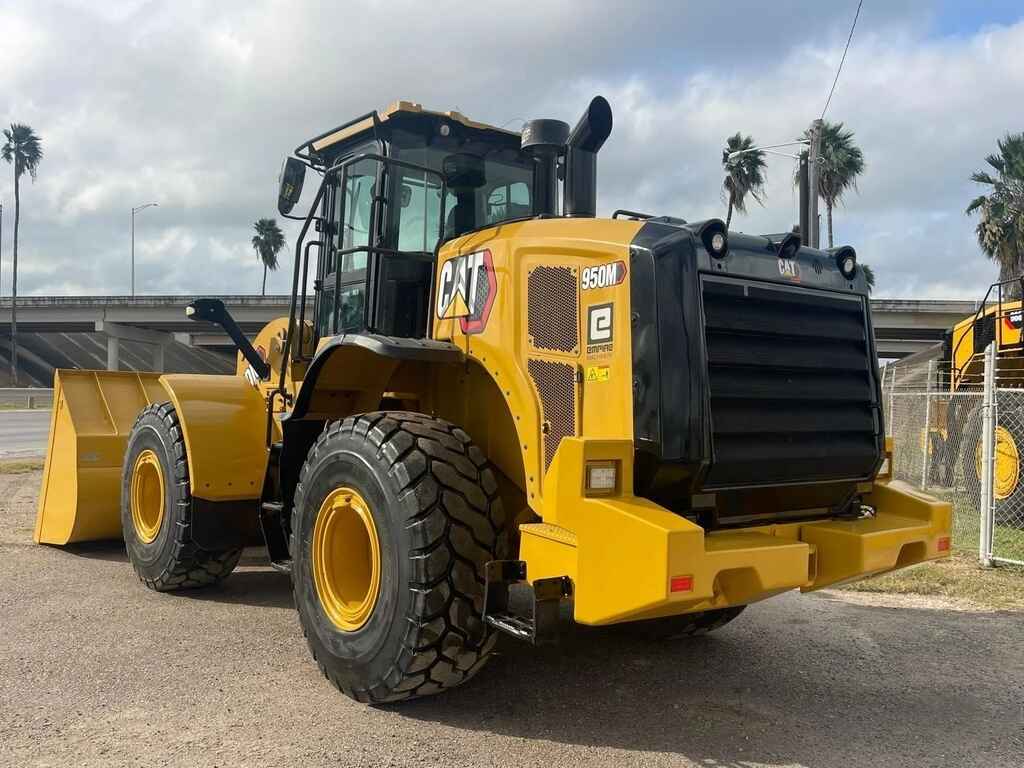

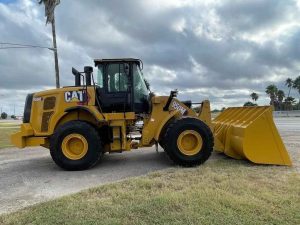

2017 950M AIR CONDITIONER RADIO AM FM BLUETOOTH AUTOSHIFT TRANSMISSION ENGINE CAT C7 WITH 5081 HOURS REAR CAMERA EXTREMELY CLEAN. FORKS AVAILABLE ON THIS PRICE.
Engine
- Model: Cat C7.1 ACERT
- Gross Power: 254 hp (187 kW)
- Net Power: 232 hp (171 kW)
- Displacement: 428 in³ (7.01 L)
- Emissions: Meets Tier 4 Final/Stage IV standards
Weights
- Operating Weight: 42,481 lbs (19,269 kg)
Performance
- Bucket Capacities: 3.3 to 12.0 yd³ (2.5 to 9.2 m³)
- Breakout Force: 40,320 lbf (179.4 kN)
- Static Tipping Load (Full Turn): 25,962 lbs (11,776 kg)
- Maximum Travel Speed: 24.5 mph (39.5 km/h)
Hydraulics
- Implement Pump Type: Variable axial piston
- Maximum Pump Output: 76 gal/min (286 L/min)
- Maximum Operating Pressure: 4,250 psi (29,300 kPa)
- Hydraulic Cycle Time (Raise): 5.1 seconds
- Hydraulic Cycle Time (Dump): 1.5 seconds
- Hydraulic Cycle Time (Lower): 2.3 seconds
- Total Hydraulic Cycle Time: 8.9 seconds
Dimensions
- Length (with Bucket on Ground): 25 ft 1 in (7.65 m)
- Width (over Tires): 9 ft 3 in (2.82 m)
- Height (to Top of Cab): 11 ft 4 in (3.45 m)
- Ground Clearance: 1 ft 2 in (0.36 m)
- Wheelbase: 11 ft 11 in (3.63 m)
- Turning Radius (over Bucket): 20 ft 10 in (6.35 m)
Features
- Transmission: 5-speed automatic with lock-up clutch torque converter
- Axles: Front fixed, rear oscillating ±13 degrees
- Brakes: Inboard wet disc service brakes; external caliper disc parking brakes
- Operator Cab: ROPS/FOPS certified, sound-suppressed, pressurized
- Steering: Load-sensing hydraulic steering system
- Tires: 23.5R25 radial
