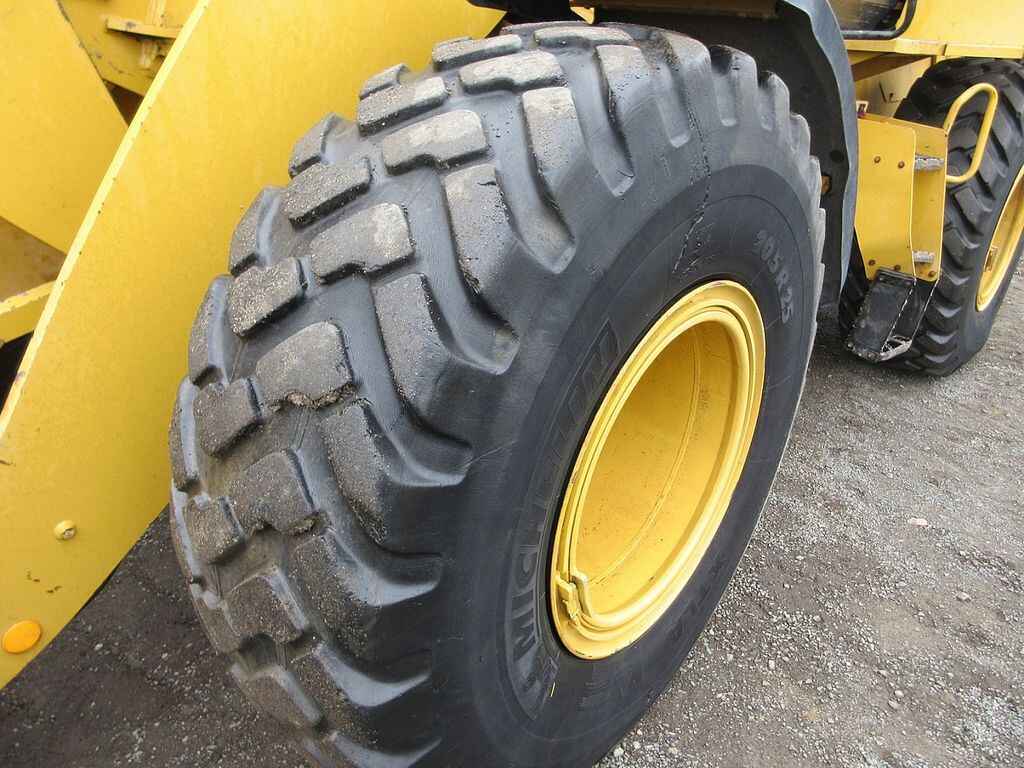

Caterpillar C7.1 Acert 6 cyl turbo diesel, cab with heat, A/C, stereo, rearview camera, 20.5R25 Michelin radial rubber, Fusion hyd coupler, GP bucket with BOCE, meter reads 11119 hours, S/N CAT0926MCLTE04131
Engine
- Model: Cat C7.1 ACERT
- Gross Power: 168 hp (125 kW)
- Net Power: 153 hp (114 kW)
- Displacement: 427 in³ (7.01 L)
- Emissions: Meets U.S. EPA Tier 4 Final/EU Stage IV emission standards
Weights
- Operating Weight: 28,193 lbs (12,793 kg)
Performance
- Bucket Capacities: 2.5–6.5 yd³ (1.9–5.0 m³)
- Breakout Force: 26,286 lbf (117 kN)
- Rated Operating Load: 7,336 kg (16,174 lbs)
- Maximum Travel Speed: 25 mph (40 km/h)
Hydraulics
- Implement System – Maximum Pump Output: 40 gal/min (150 L/min)
- Maximum Operating Pressure: 3,771 psi (26,000 kPa)
Dimensions
- Height to Top of Cab: 10 ft 11 in (3,330 mm)
- Length with Bucket on Ground: 24 ft 6 in (7,451 mm)
- Width over Tires: 8 ft 4 in (2,540 mm)
- Ground Clearance: 1 ft 5 in (440 mm)
- Wheelbase: 9 ft 10 in (3,000 mm)
Features
- Transmission: Hydrostatic with electronic control
- Axles: Front: Fixed; Rear: Oscillating ±11°
- Steering Articulation Angle: ±40°
- Operator Cab: ROPS/FOPS certified with standard air conditioning
- Hydraulic System: Load-sensing with variable displacement piston pump
