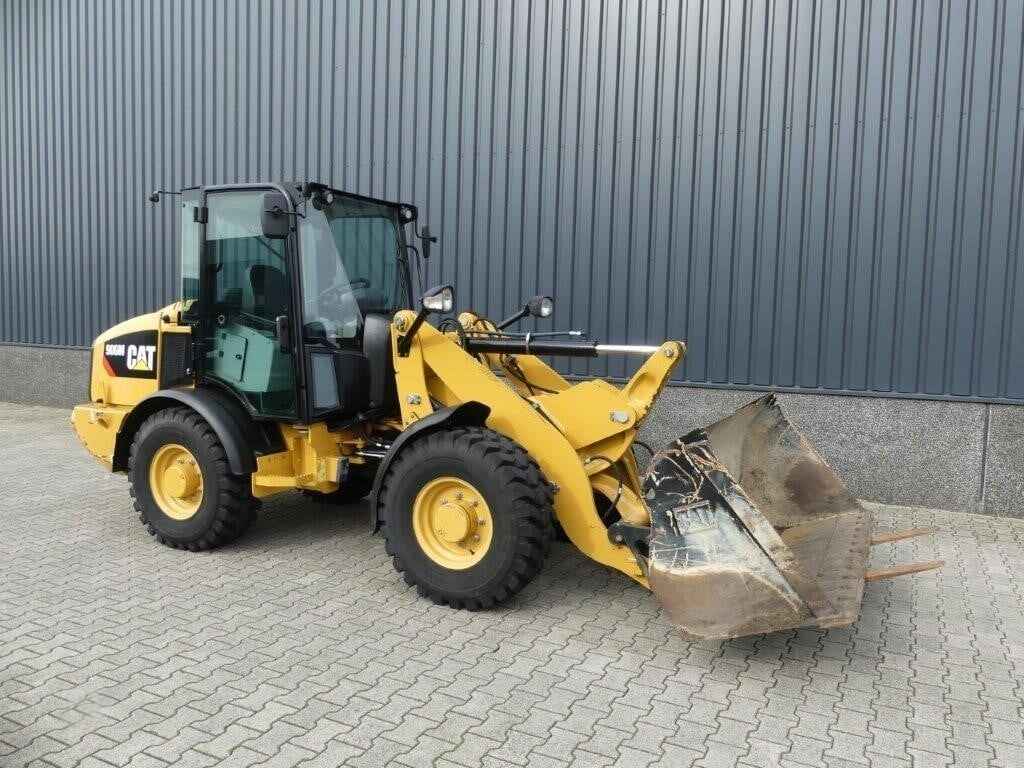

79″ multi purpose bucket and forks, 6500lb lift, 4433lb at full turn, excellent condition.
HEAT/AC
RIDE CONTROL
DIG CONTROL
2 SPEED
AUX HYDRAULICS W/3RD VALVE
QUICK COUPLER
LIGHT USE MACHINE, READY FOR WORK
Tires Condition Rear Right: 90 %
Tires Condition Front Right: 90 %
Tires Condition Rear Left: 90 %
Tires Condition Front Left: 90 %
Bucket Condition: 80 %
Engine
- Engine Model: Cat® C3.3B DIT (Direct Injection Turbocharged)
- Net Power: 74 HP (55 kW) at 2,400 rpm
- Gross Power: 75 HP (56 kW)
- Displacement: 203 in³ (3.3 L)
- Emissions: Tier 4 Final/Stage IV compliant
- Maximum Torque: 192 lb-ft (260 Nm) at 1,600 rpm
Operating Specifications
- Operating Weight: 12,346 lbs (5,600 kg)
- Rated Bucket Capacity: 1.3 – 1.6 yd³ (1.0 – 1.2 m³)
- Breakout Force: 9,414 lbf (41.9 kN)
- Tipping Load (Full Turn): 7,264 lbs (3,295 kg)
- Dump Clearance at Max Lift: 8.5 ft (2.59 m)
Transmission
- Transmission Type: Hydrostatic, 4-wheel drive
- Travel Speed – Forward: Up to 20 mph (33 km/h)
- Travel Speed – Reverse: Up to 20 mph (33 km/h)
- Differential: Limited slip front and rear
Hydraulic System
- Pump Type: Variable Displacement Piston Pump
- Hydraulic Flow – Standard: 21.7 gal/min (82 L/min)
- Hydraulic Flow – High Flow (optional): 32 gal/min (121 L/min)
- System Pressure: 3,626 psi (25,000 kPa)
Dimensions
- Overall Length (with bucket): 18.1 ft (5.52 m)
- Width Over Tires: 6 ft (1.8 m)
- Height to Top of Cab: 8.3 ft (2.52 m)
- Wheelbase: 6.3 ft (1.95 m)
- Ground Clearance: 13 in (0.33 m)
- Turning Radius (Outside of Tires): 12.5 ft (3.8 m)
Fuel and Fluid Capacities
- Fuel Tank Capacity: 27.7 gal (105 L)
- Hydraulic System: 14.5 gal (55 L)
- Engine Oil Capacity: 2.6 gal (10 L)
- Cooling System: 3.7 gal (14 L)
Cab and Features
- ROPS/FOPS Certified Enclosed Cab with optional Air Conditioning

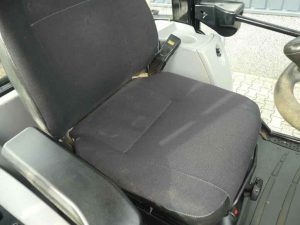

- Adjustable Suspension Seat

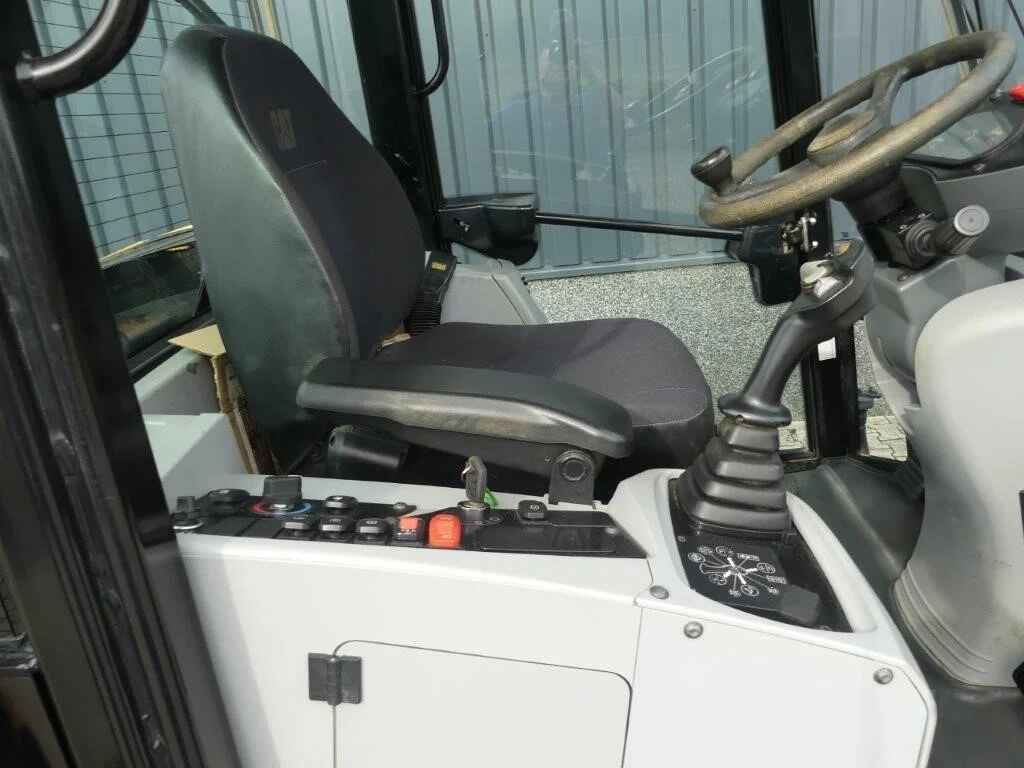

- Joystick Controls with Integrated Transmission Functions
- High Visibility Cab with Large Windows
- Quick Coupler for Attachments
Optional Features
- High-Flow Hydraulics
- Ride Control System
- Work Tool Attachments (buckets, forks, grapples, etc.)
- Auxiliary Hydraulic Lines
- LED Work Lights
