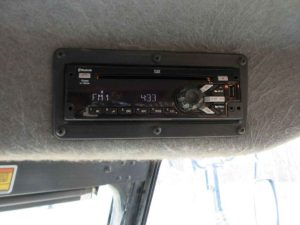

6 X 6, CATERPILLAR C15 6 CYL TURBO DIESEL, CAB WITH HEAT, A/C, STEREO, RETARDER, REARVIEW CAMERA, SUPPLEMENTAL STEERING, 35 TON CAPACITY, 26.5R25 FIRESTONE RADIAL RUBBER, METER READS 8363 HOURS, 4985 IDLE HOURS, S/N CAT0735CLTFJ00219
Engine
- Model: Cat® C15 ACERT™
- Gross Power (SAE J1995): 452 hp (337 kW)
- Net Power (SAE J1349): 441 hp (329 kW)
- Displacement: 927 in³ (15.2 L)
Weights
- Operating Weight (Empty): 69,225 lbs (31,400 kg)
- Rated Payload: 72,091 lbs (32,700 kg)
- Gross Weight: 141,316 lbs (64,100 kg)
Performance
- Top Speed (Loaded): 33.5 mph (53.9 km/h)
- Body Capacity (Heaped SAE 2:1): 26.8 yd³ (20.5 m³)
- Body Capacity (Struck): 19.6 yd³ (15 m³)
Hydraulics
- Steering System – Circuit: Load Sensing
- Steering System – Pump: Piston Pump
- Maximum Steering Angle: 45 degrees
Dimensions
- Overall Length: 36 ft 3 in (11,062 mm)
- Overall Width: 13 ft 8 in (4,166 mm)
- Overall Height: 13 ft 1 in (3,996 mm)
- Turning Radius (SAE): 27 ft 8 in (8,420 mm)
Features
- Transmission: 6-speed automatic
- Brakes: Oil-cooled, multi-disc
- Cab: ROPS/FOPS certified with air conditioning
- Suspension: Front: Independent; Rear: Pivoting
