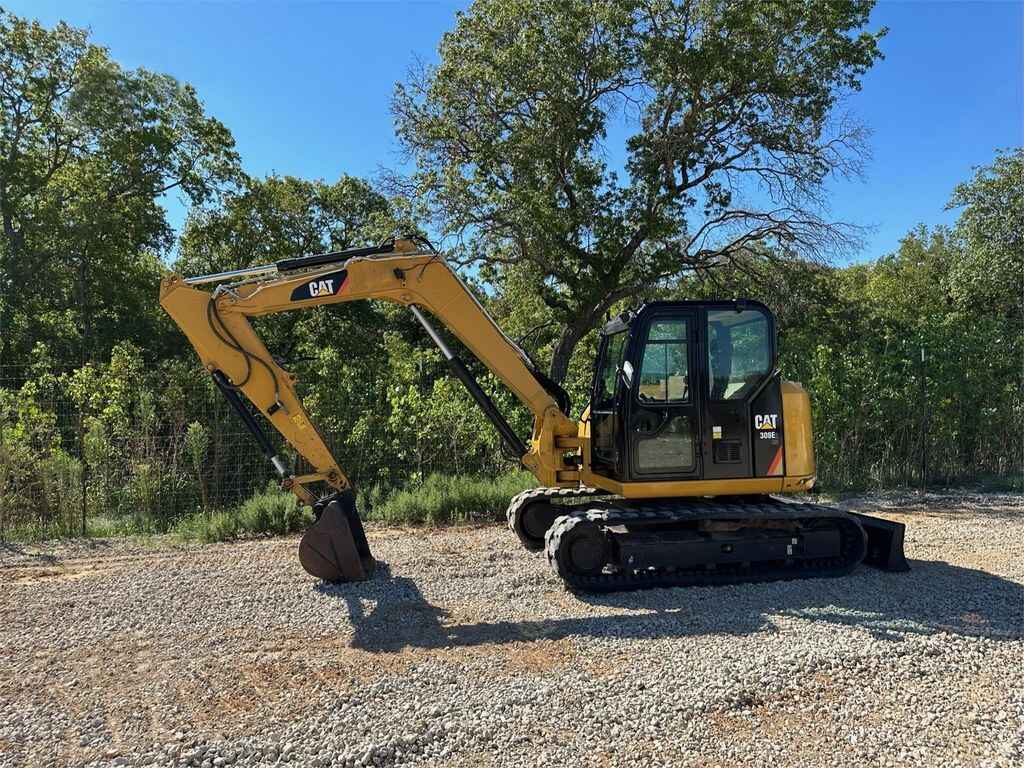

2017 Caterpillar 308E2 CR Mini Excavator
– Enclosed cab
– Heat and A/C
– Auxiliary hydraulics
– Thumb bracket
– Backfill blade
– Swing boom

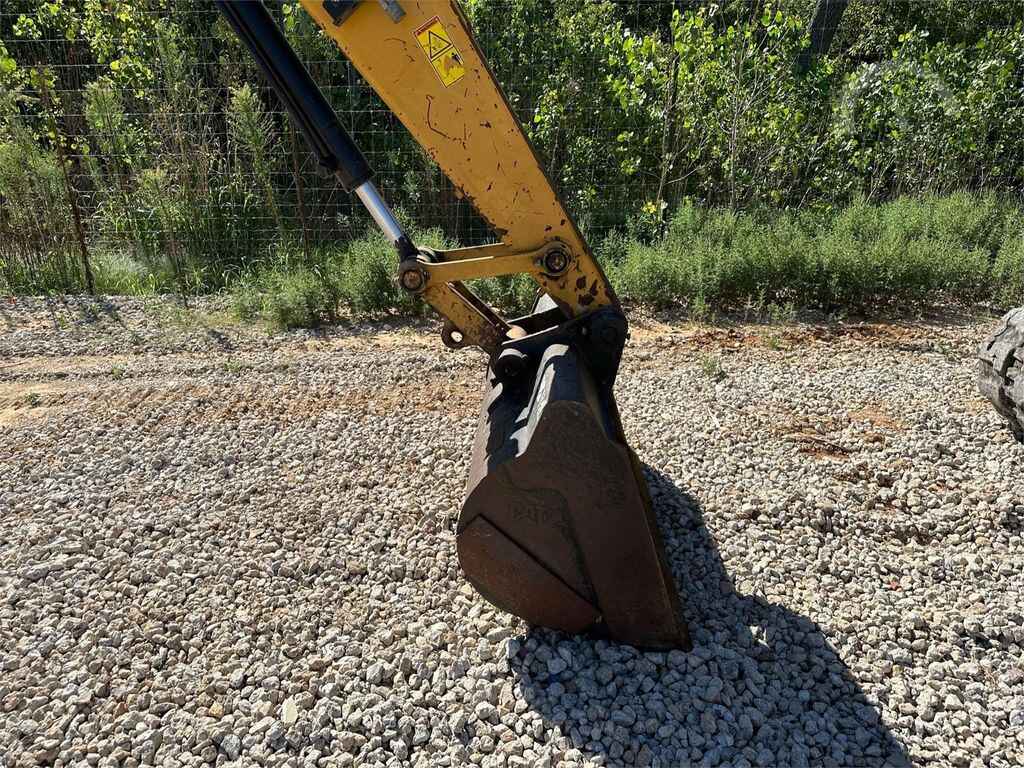

– 48″ cleanup bucket
– 17.5″ rubber tracks
– Shows 1,796 hours
Engine
- Model: Cat C3.3B
- Net Power: 65 hp (48.5 kW)
- Gross Power: 66.6 hp (49.7 kW)
- Displacement: 203.2 in³ (3.33 L)
- Emissions: Meets U.S. EPA Tier 4 Final and EU Stage IIIB standards
Weights
- Operating Weight: 18,519 lbs (8,400 kg)
Performance
- Maximum Dig Depth: 13 ft 7.5 in (4.15 m)
- Maximum Reach: 23 ft (7.02 m)
- Bucket Digging Force: 13,534 lbf (60.2 kN)
- Stick Digging Force (Standard): 9,015 lbf (40.1 kN)
- Stick Digging Force (Long): 7,891 lbf (35.1 kN)
- Travel Speed (High): 3.2 mph (5.1 km/h)
- Travel Speed (Low): 1.8 mph (3.2 km/h)
Hydraulics
- Main System – Maximum Flow: 39.6 gal/min (150 L/min)
- Auxiliary Circuit – Primary: 33.8 gal/min (128 L/min)
- Auxiliary Circuit – Secondary: 16.9 gal/min (64 L/min)
- Operating Pressure – Equipment: 4,061 psi (28,000 kPa)
- Operating Pressure – Swing: 3,481 psi (24,000 kPa)
- Operating Pressure – Travel: 4,061 psi (28,000 kPa)
Dimensions
- Transport Length: 20 ft 11 in (6.38 m)
- Transport Width: 7 ft 7 in (2.32 m)
- Transport Height: 8 ft 4 in (2.55 m)
- Tail Swing Radius: 3 ft 7 in (1.09 m)
- Ground Clearance: 1 ft 1 in (0.33 m)
Features
- Compact Radius Design: Allows operation in confined spaces
- High Definition Hydraulic System: Provides load sensing and flow sharing capabilities
- Operator Environment: Includes a high-quality suspension seat and easy-to-adjust armrests
- Auxiliary Hydraulics: Standard with quick connectors for versatility
- Blade: Standard dozer blade for backfilling and leveling
