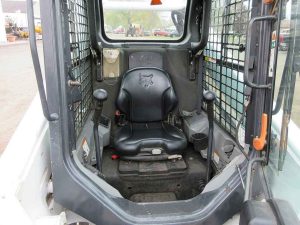

4 cyl diesel, cab with heat, A/C, 2 speed travel, Power Bob-Tach, High Flow, GP bucket, meter reads 4423 hours, S/N ALM418112
Dimensions
- A – Length With Bucket: 11.09 ft
- B – Width Over Tires: 5.4 ft
- C – Height To Top Of Cab: 6.47 ft
- D – Wheelbase: 3.55 ft
- E – Ground Clearance: 7.29 in
- F – Length Without Bucket: 8.72 ft
- G – Clearance At Max Lift And Dump: 7.61 ft
- H – Reach At Max Lift And Dump: 32.6 in
Engine
- Emission Tier Level: Tier 4
- Gross Power: 61 hp
- Cooling System: Liquid
- Aspiration: Turbocharged
- Fuel Type: Turbo Diesel
Operational
- Lift Arm Path: Vertical
- Operational Weight: 6,479.4 lb
- Fuel Capacity: 24.7 gal
- Max Speed: 7.4 mph
Loader
- Loader Series: M2-Series
- Height To Hinge Pin: 10 ft
- Operating Load Rating: 1,950 lb
- Tipping Angle: 39°
- Bucket Width: 68 in
Hydraulic
- Main Pump Flow (Standard): 17.1 gal/min
- Main Pump Flow (Optional): 26.7 gal/min
- Relief Valve Pressure: 3,500 psi
