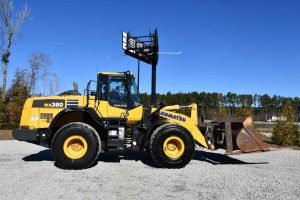

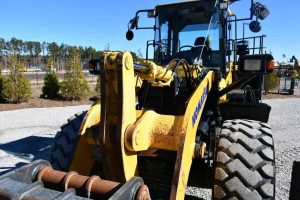

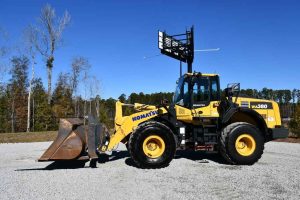

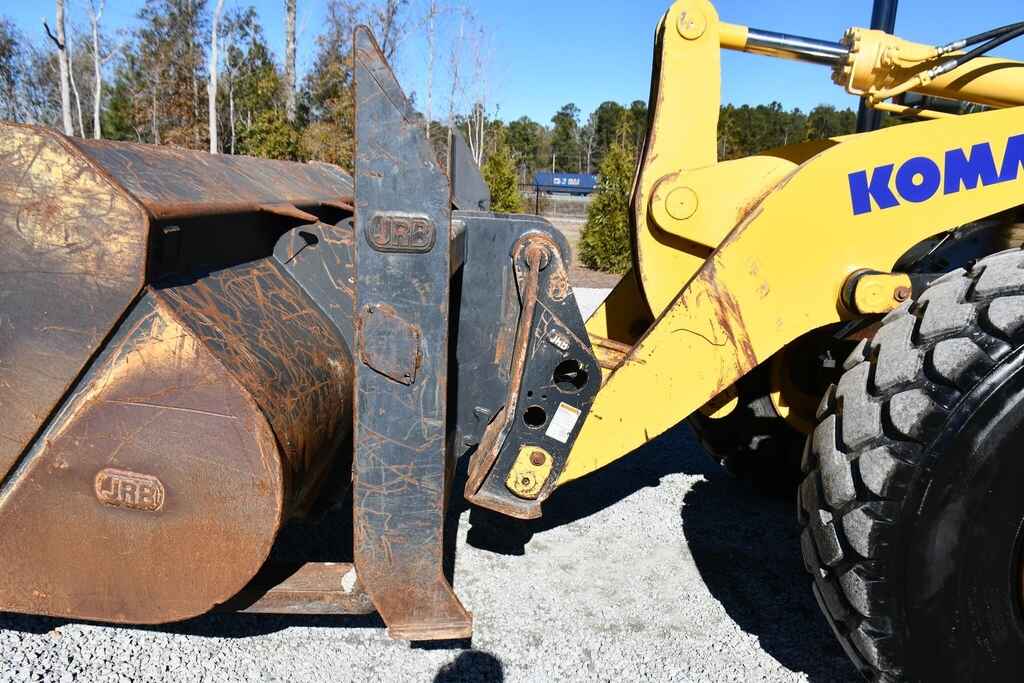

Cab, A/C, meter reads 7,095 hours, JRB Quick Hydraulic coupler, JRB 4.0 yd bucket, JRB FORKS, back up camera.
Bucket Specifications:
- Dump Clearance at Max Raise: 9.54 ft
- Bucket Capacity (Heaped): 4.32 yd³
- Bucket Capacity (Struck): 3.8 yd³
- Bucket Width: 9.54 ft
- Breakout Force: 35,494 lb
Dimensions:
- Ground Clearance: 1.5 ft
- Length with Bucket on Ground: 27.27 ft
- Width Over Tires: 9.13 ft
- Height to Top of Cab: 11.13 ft
- Wheelbase: 10.83 ft
- Hinge Pin – Max Height: 13.44 ft
- Reach at Max Lift and Dump: 3.78 ft
Engine Specifications:
- Engine Model: SAA6D107E-3
- Emissions Certification: EPA Tier 4
- Number of Cylinders: 6
- Net Power: 191 hp
- Gross Power: 192 hp
- Torque Measured @: 2,100 rpm
- Aspiration: Turbocharged
- Bore: 4.3 in
- Stroke: 4.9 in
- Displacement: 408.3 cu in
- Air Cleaner: Dry type with double elements
- Fuel Type: Diesel
- Diesel Fuel Tank Capacity (Standard Tank): 9.6 gal
Operational Specifications:
- Operating Weight: 40,686.4 lb
- Fuel Capacity: 79.3 gal
- Hydraulic System Fluid Capacity: 37.6 gal
- Engine Oil Fluid Capacity: 6.1 gal
- Cooling System Fluid Capacity: 16.1 gal
- Transmission Fluid Capacity: 14.3 gal
- Front Axle/Diff Fluid Capacity: 10.6 gal
- Rear Axle/Diff Fluid Capacity: 10.6 gal
- Static Tipping Weight: 34,039.4 lb
- Operating Voltage: 24V
- Alternator Supplied Amperage: 90 amps
Transmission Specifications:
- Transmission Type: Automatic
- Number of Forward Gears: 4
- Number of Reverse Gears: 4
- Max Speed – Forward: 23.3 mph
- Max Speed – Reverse: 24 mph
Hydraulic System Specifications:
- Pump Flow Capacity: 36.2 gal/min
- Raise Time: 5.9 sec
- Dump Time: 1.8 sec
- Lower Time: 3.3 sec
- Pump Type: Piston pump
- Relief Valve Pressure: 4,550 psi
