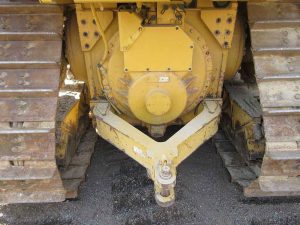

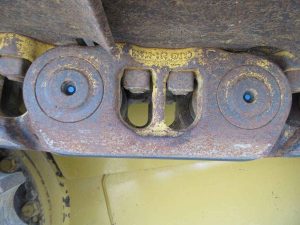

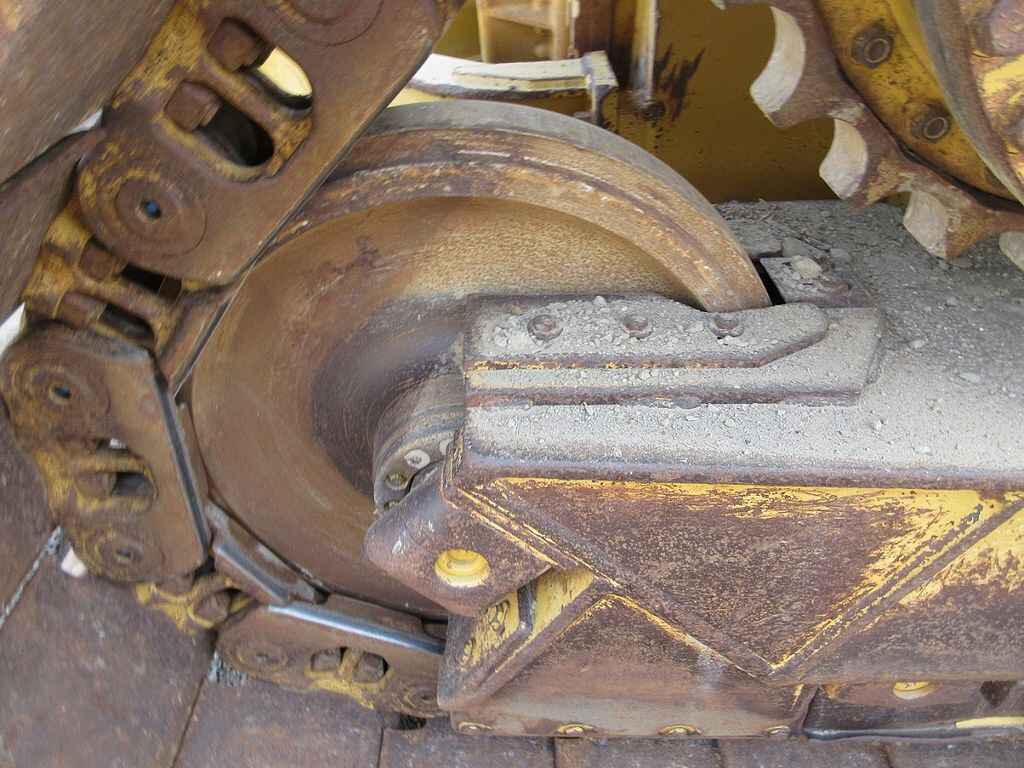

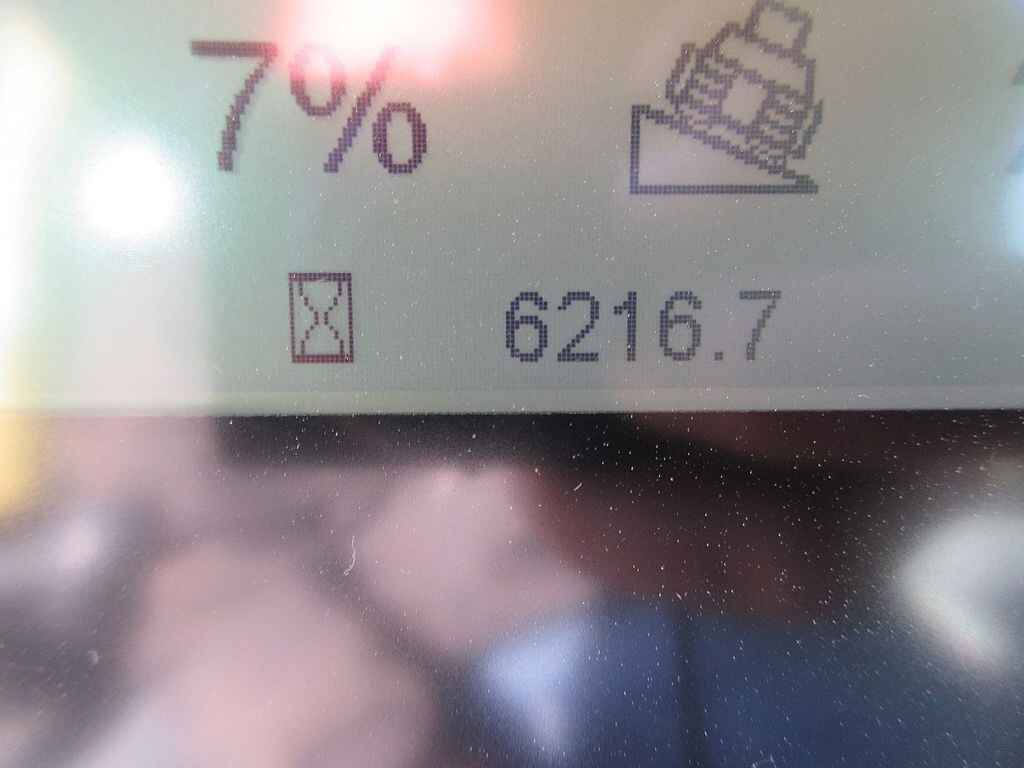

CATERPILLAR C9 6 CYL TURBO DIESEL, CAB WITH HEAT, A/C, STEREO, ARO READY, REAR DRAWBAR, PLUMBED FOR RIPPER/WINCH, SEMI-U BLADE WITH TILT, BOCE, SYSTEM ONE U/C, METER READS 6215 HOURS, 2474 NEUTRAL HOURS, 620 IDLE HOURS, S/N CAT00D6TEKMR00556
Engine
- Model: Cat C9 ACERT
- Gross Power: 228 hp (170 kW)
- Net Power: 200 hp (149 kW)
- Displacement: 537 in³ (8.8 L)
- Emissions: U.S. EPA Tier 3/EU Stage IIIA
Weights
- Operating Weight: 44,795 lbs (20,324 kg)
- Shipping Weight: 37,589 lbs (17,050 kg)
Performance
- Ground Pressure: 8.9 psi (61.4 kPa)
- Track on Ground Length: 113.1 in (2,874 mm)
- Ground Clearance: 15 in (380 mm)
Hydraulics
- Pump Flow Capacity: 49.9 gal/min (189 L/min)
- Relief Valve Pressure: 2,799 psi (19,300 kPa)
Dimensions
- Width Over Tracks: 8 ft (2,438 mm)
- Height to Top of Cab: 10.5 ft (3,200 mm)
- Length without Blade: 12.67 ft (3,860 mm)
Transmission
- Type: Powershift
- Number of Forward Gears: 3
- Number of Reverse Gears: 3
- Max Speed – Forward: 7.2 mph (11.6 km/h)
- Max Speed – Reverse: 9.1 mph (14.6 km/h)
Fuel and Fluid Capacities
- Fuel Tank: 112 gal (424 L)
- Cooling System: 18.5 gal (70 L)
- Engine Oil: 7.4 gal (28 L)
- Hydraulic Fluid: 13.6 gal (51.5 L)
- Powertrain Fluid: 38.5 gal (145.7 L)
- Final Drives (each): 3.6 gal (13.6 L)
