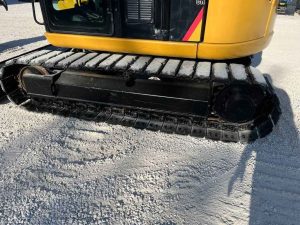

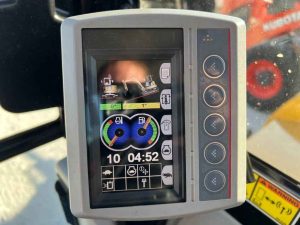

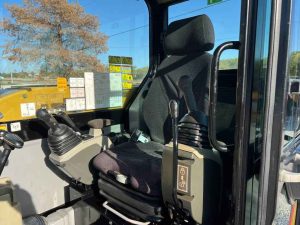

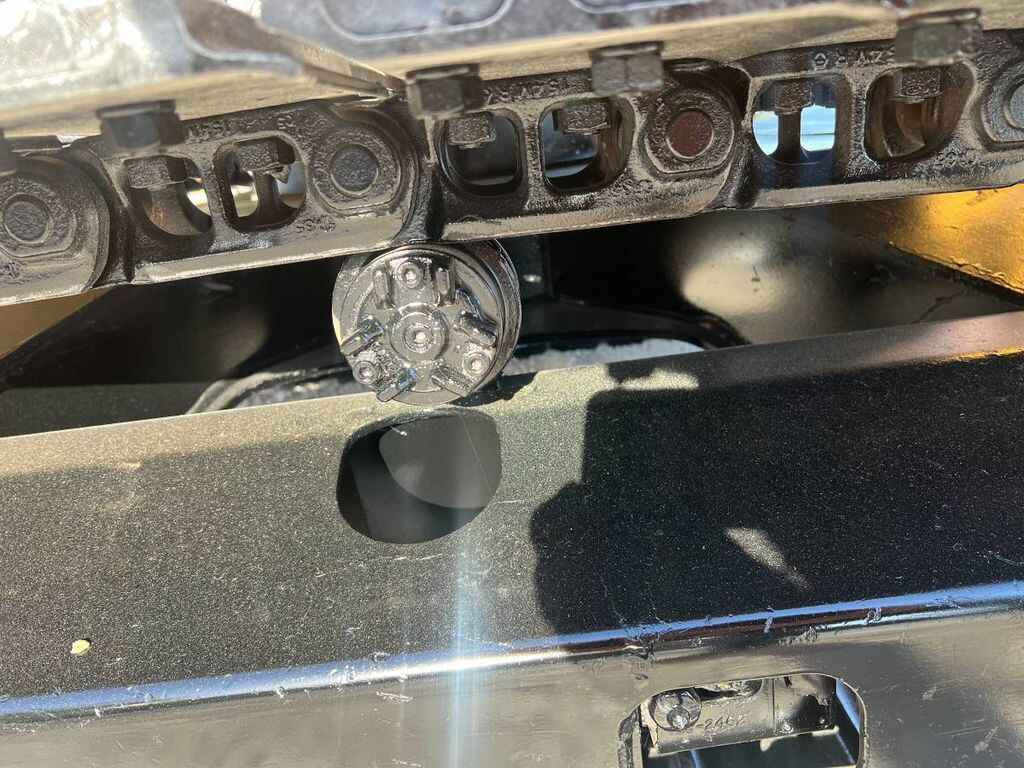

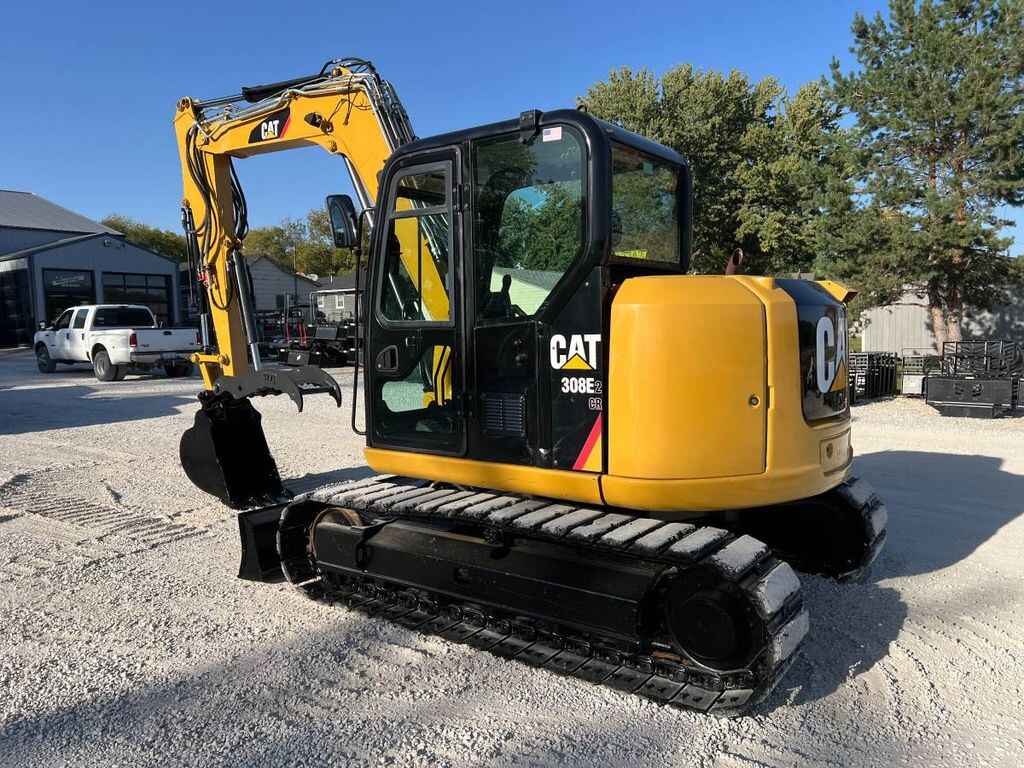

2016 Cat 308E2 CR Crawler Excavator, Brand New Heavy Duty Hydraulic Thumb, 70 hp Cat diesel engine, has only 3,900 hours (many of these where idle hours came from a utility company), full cab with heat, and cold air, air ride seat, rear view camera, machine angle monitor, dual direction Aux hyd. lines to the end of the stick, long stick, nice 24″ tooth bucket, bucket coupler, tracks and undercarriage are good, machine weight is 18,000 lbs, and is only 7.5′ wide so its easy to haul, very nice paint and not all beat up like most, machine starts and operates great!!!
Engine
- Model: Cat® C3.3B
- Net Power: 65 hp (48.5 kW)
- Gross Power: 66.6 hp (49.7 kW)
- Displacement: 203.2 in³ (3.33 L)
- Emissions: Meets U.S. EPA Tier 4 Final and EU Stage IIIB emission standards
Weights
- Operating Weight: 18,519 lbs (8,400 kg)
Performance
- Maximum Dig Depth: 13 ft 7 in (4,150 mm)
- Maximum Reach: 22 ft 9 in (6,820 mm)
- Bucket Digging Force: 13,534 lbf (60.2 kN)
- Stick Digging Force (Standard): 9,015 lbf (40.1 kN)
- Stick Digging Force (Long): 7,891 lbf (35.1 kN)
- Swing Speed: 11 rpm
Hydraulics
- Main System – Maximum Flow: 39.6 gal/min (150 L/min)
- Auxiliary Circuit – Primary: 33.8 gal/min (128 L/min)
- Auxiliary Circuit – Secondary: 16.9 gal/min (64 L/min)
- Operating Pressure – Equipment: 4,061 psi (28,000 kPa)
- Operating Pressure – Swing: 3,481 psi (24,000 kPa)
Dimensions
- Transport Length: 20 ft 11 in (6,380 mm)
- Transport Width: 7 ft 7 in (2,320 mm)
- Transport Height: 8 ft 4 in (2,550 mm)
- Track Width: 17.7 in (450 mm)
- Ground Clearance: 1 ft 1 in (335 mm)
Capacities
- Fuel Tank: 33 gal (125 L)
- Hydraulic Tank: 21.7 gal (82 L)
- Engine Oil: 3 gal (11 L)
- Cooling System: 3.7 gal (14 L)
