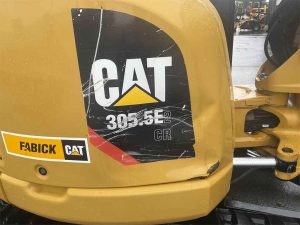

2016 Caterpillar 305.5E2 CR Mini Excavator
– 45.7 HP CAT C2.4 Engine
– 12,000 LB Operating Weight

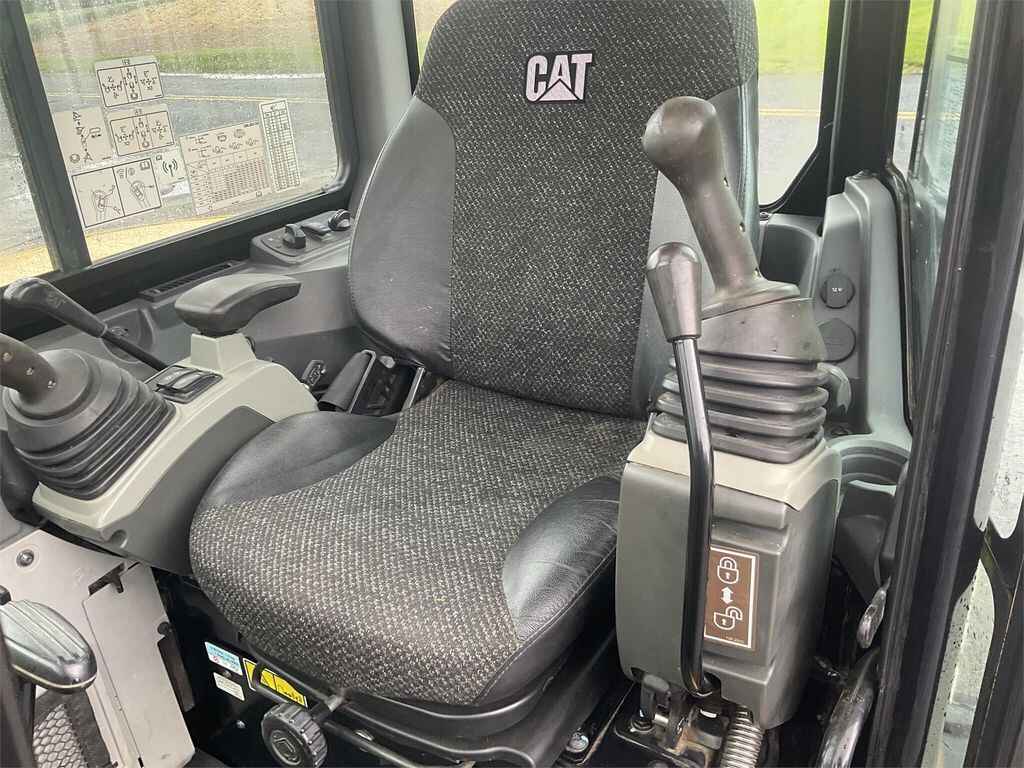

– Cab with Heat & AC
– 2 Speed Travel
– Swing Boom

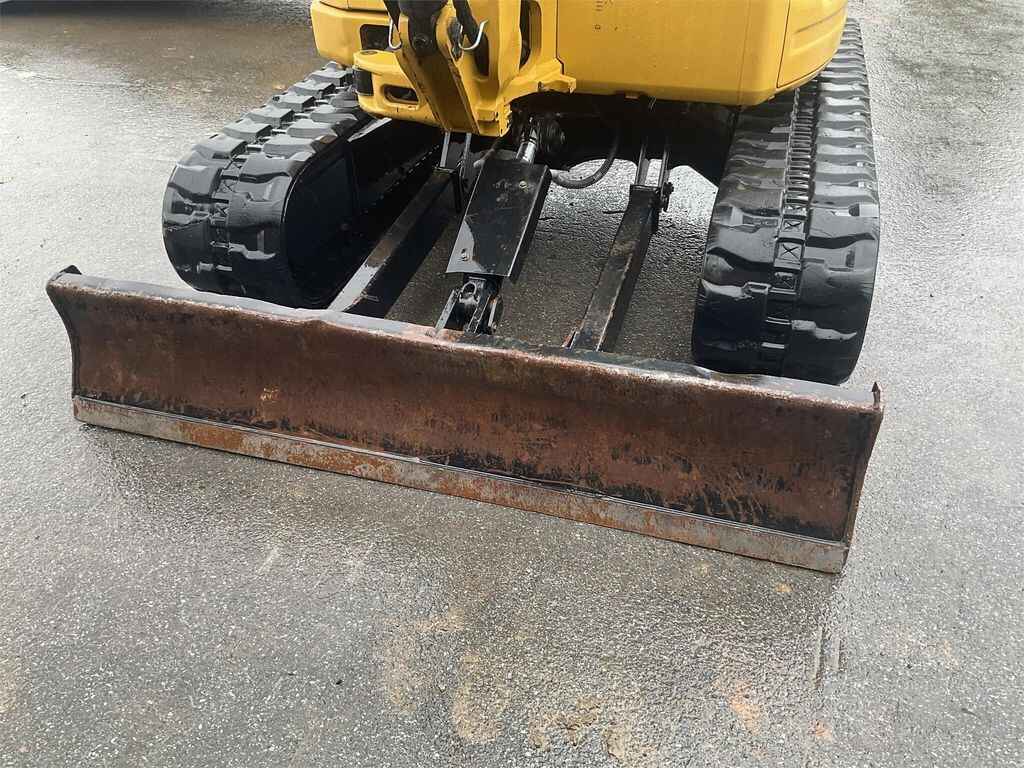

– 78” Straight Dozer Blade
– Rubber Tracks
– Auxiliary Hydraulics with Dual Ports
– Hydraulic Thumb
– HYDRAULIC Bucket Quick Coupler
– 30” CAT Digging Bucket
– 24” Smooth Edge Bucket INCLUDED.
– ONLY 808 HOURS!!!!
– NICE, OWNER OPERATOR UNIT FROM A SMALL CONTRACTOR!!!!
Engine
- Model: Cat C2.4 DI
- Net Power: 31.1 kW (41.7 hp)
- Gross Power: 34.1 kW (45.7 hp)
- Displacement: 2.4 L
Weights
- Operating Weight with Cab: 5,400 kg (11,905 lb)
Performance
- Maximum Dig Depth: 3,870 mm (152 in)
- Maximum Reach at Ground Level: 6,020 mm (237 in)
- Maximum Dump Clearance: 4,080 mm (161 in)
- Bucket Digging Force: 50.9 kN (11,445 lbf)
- Stick Digging Force (Standard): 28.9 kN (6,500 lbf)
- Stick Digging Force (Long): 24.8 kN (5,575 lbf)
Hydraulics
- Pump Flow at 2,400 rpm: 150 L/min (39.6 gal/min)
- Operating Pressure – Equipment: 245 bar (3,553 psi)
- Operating Pressure – Travel: 245 bar (3,553 psi)
- Operating Pressure – Swing: 216 bar (3,132 psi)
- Auxiliary Circuit – Primary: 80 L/min (21.1 gal/min)
- Auxiliary Circuit – Secondary: 25 L/min (6.6 gal/min)
Dimensions
- Overall Length: 5,460 mm (215 in)
- Overall Width: 1,980 mm (78 in)
- Overall Height: 2,550 mm (100 in)
- Tail Swing Radius: 1,130 mm (44 in)
- Ground Clearance: 615 mm (24 in)
Service Refill Capacities
- Cooling System: 10.5 L (2.8 gal)
- Engine Oil: 9.5 L (2.5 gal)
- Fuel Tank: 63 L (16.6 gal)
- Hydraulic Tank: 68.3 L (18 gal)
- Hydraulic System: 78 L (20.6 gal)
