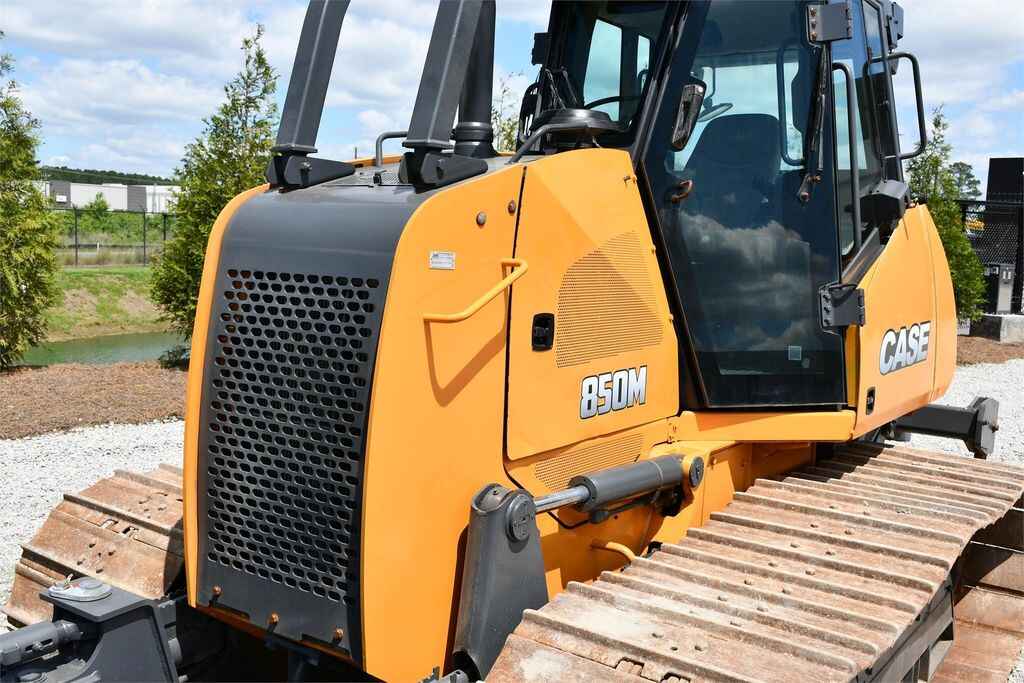

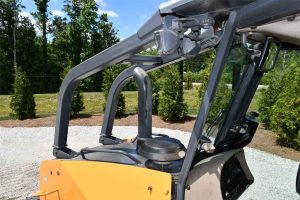

Cab,A/C, meter reads 4587 hours, limb risers, 6-way blade, multi-shank ripper
Engine
- Model: FPT F4HFE613F
- Gross Power: 138 hp (103 kW)
- Net Power: 127.4 hp (95 kW)
- Displacement: 408.9 in³ (6.7 L)
- Emission Tier Level: Tier 4 Final
Weights
- Operating Weight: 32,637 lbs (14,804 kg)
Performance
- Maximum Drawbar Pull: 47,997 lbs (21,771 kg)
- Travel Speed (Forward/Reverse): 5.8 mph (9.3 km/h)
Hydraulics
- Pump Flow: 34.9 gal/min (132 L/min)
Dimensions
- Blade Width: 11.1 ft (3.4 m)
- Blade Height: 44.1 in (1.12 m)
- Blade Capacity: 4.16 yd³ (3.18 m³)
- Ground Clearance: 1.06 ft (0.32 m)
- Width Over Tracks: 7.84 ft (2.39 m)
- Height to Top of Cab: 116.38 in (2.96 m)
- Length of Track on Ground: 8.42 ft (2.57 m)
Undercarriage
- Track Gauge: 70 in (1.78 m)
- Width of Shoes: 30 in (0.76 m)
- Number of Shoes per Side: 43
- Number of Bottom Rollers per Side: 7
- Number of Upper Rollers: 2
