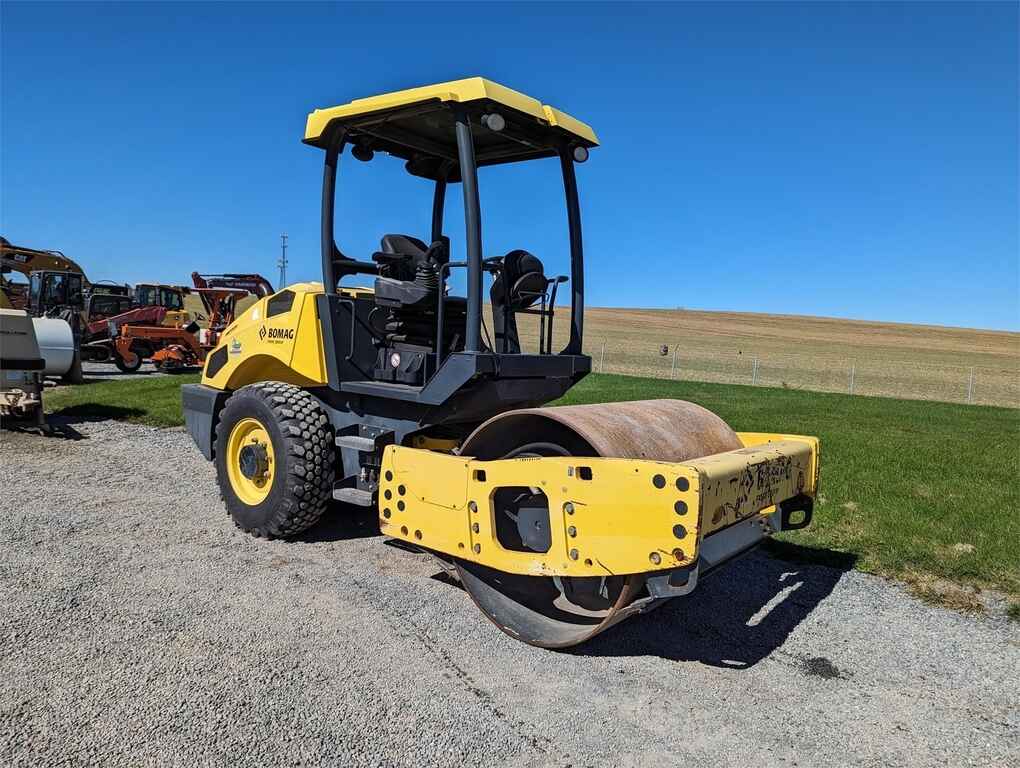

OROPS, 56″ Compactor Drum, Kubota Diesel, Good 12.5×20 Tires
Dimensions
- Overall Length: 171.8 in
- Overall Width: 4.68 ft
- Height To Top Of Cab: 8.93 ft
- Wheelbase: 88.6 in
- Ground Clearance: 12.6 in
- Operating Width: 4.68 ft
Specifications
Steering System
- System: Oscillatory Articulation
- Steering Method: Hydrostatic
Engine
- Fuel: Diesel
- Emissions Level: Stage 4
- Number Of Cylinders: 4
- Cooling Method: Water
- Engine Make: Kubota
- Engine Model: V3307 CR-T
- Gross Power: 74.3 hp
- Power Measured @: 2400 rpm
- Aspiration: Tier 4f
Operational
- Operating Weight: 10,472 lb
- Fuel Capacity: 29.1 gal
- Max Speed: 5.6 mph
- Tires (If Applicable): 12.5-20 12PR
- Operating Voltage: 12V
Drum
- Drum Width: 56.1 in
- Drum Diameter: 41.7 in
- Static Linear Load: 97.8 lb/in
- Vibration Frequency 1: 31 Hz
- Nominal Amplitude – High: 0.1 in
- Vibration Frequency 2: 35 Hz
- Centrifugal Force – High: 12,589 lb
Weights
- Gross Weight: 12,346 lb
- Loaded Weight: 5,490 lb
Brakes
- Parking Brake: Hydromec
- Service Brake: Hydrostatic
