– CHA
– 4X4
– Powershift Trans
– 1465 Hours
– 101 Engine HP
– AM/FM/WB Radio

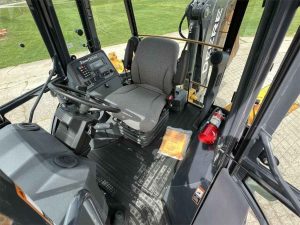

– Air Seat
– Joystick Controlled 91″ Bucket
– 2 Stick Controll 24″ Backhoe Bucket
– 12.5/80-18 Front Tires @ 30%
– 21L-24 Rear Tires @ 40%

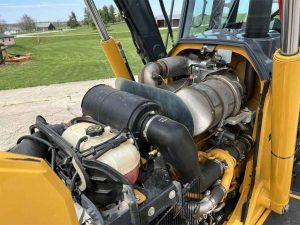

Engine
- Model: John Deere PowerTech Plus 4045HT082
- Type: 4-cylinder, turbocharged diesel
- Displacement: 4.5 L (276 cu in)
- Net Power: 74 kW (99 hp) at 2,244 rpm
- Peak Torque: 417 Nm (307 lb-ft) at 1,400 rpm
Transmission
- Type: PowerShift
- Gears: 5 forward, 3 reverse
- Maximum Forward Speed: 40 km/h (24.9 mph)
- Maximum Reverse Speed: 20.4 km/h (12.7 mph)
Hydraulic System
- Type: Open center
- Pump Flow (Loader): 106 L/min (28 gpm)
- Pump Flow (Backhoe): 136 L/min (36 gpm)
- System Pressure: 25 MPa (3,625 psi)
Dimensions
- Wheelbase: 2,130 mm (84 in)
- Length (with attachments): 7,280 mm (288 in)
- Height (to top of cab): 2,790 mm (110 in)
- Width (over tires): 2,180 mm (86 in)
- Ground Clearance: 330 mm (13 in)
Operating Weights
- 2WD with Cab: 7,565 kg (16,645 lbs)
- 4WD with Cab: 7,785 kg (17,130 lbs)
Loader Performance
- Maximum Lift Height (to pin): 3,450 mm (136.4 in)
- Dump Clearance: 2,680 mm (106 in)
- Lift Capacity (to full height at pin): 3,470 kg (7,630 lbs)
- Breakout Force (at pin): 5,020 kg (11,045 lbs)
Backhoe Performance
- Standard Digging Depth: 4,340 mm (171.5 in)
- Extendable Dipperstick Digging Depth: 5,530 mm (218.5 in)
- Bucket Digging Force: 5,615 kg (12,356 lbs)
- Dipperstick Digging Force: 3,740 kg (8,230 lbs)
