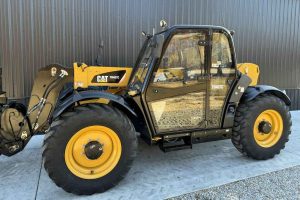

Ready to work! No issues at all! Just fully cleaned serviced & Looked over! Delivery available!
⁃ Only 2,890 hours
⁃ 3 way steer
⁃ Hydraulic Angle forks
⁃ Well Maintained & greased
⁃ 100 Hp NO DEF
⁃ 17k Lbs
⁃ 4k lift at MAX height
⁃ 8k Load capacity
⁃ 24’ lift height
⁃ Enclosed with Heat & Air
READY TO WORK!
Engine
- Model: Cat C3.4B
- Gross Power: 101 hp (75 kW)
- Maximum Torque: 420 Nm @ 1,400 rpm
- Displacement: 207.5 in³ (3.4 L)
Weights
- Operating Weight: 19,246 lbs (8,730 kg)
Performance
- Rated Load Capacity: 8,150 lbs (3,700 kg)
- Maximum Lift Height: 24 ft (7.3 m)
- Maximum Forward Reach: 12.3 ft (3.76 m)
- Load at Maximum Height: 4,000 lbs (1,814 kg)
- Load at Maximum Reach: 3,300 lbs (1,497 kg)
- Top Travel Speed: 25 mph (40 km/h)
Hydraulics
- Pump Type: Variable displacement load sensing axial piston pump
- Maximum Pump Flow: 39.63 gal/min (150 L/min)
- Maximum System Pressure: 3,625 psi (25 MPa)
Dimensions
- Length to Fork Face: 16.91 ft (5.15 m)
- Width over Tires: 7.88 ft (2.4 m)
- Overall Height: 7.83 ft (2.39 m)
- Wheelbase: 10.01 ft (3.05 m)
- Ground Clearance: 1.35 ft (0.41 m)
Transmission
- Type: Powersyncro
- Number of Forward Gears: 4
- Number of Reverse Gears: 3
- Max Speed – Forward: 19.9 mph (32 km/h)
- Max Speed – Reverse: 13.1 mph (21 km/h)
Tires
- Standard: 15.5/80-24 16PR
- Optional Construction: 400/80 R24 Power CL, 440/80 R24 Power CL, 15.50 x 25 SGL
- Optional Agriculture: 460/70 R24 XMCL Radial, 500/70 R24 XMCL
