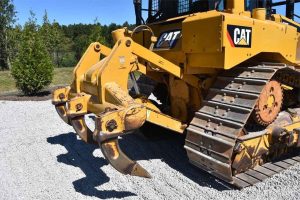

Cab, A/C, meter reads 8352 hours, SU Blade, multi-shank ripper, brush guards, ripper.
Engine
- Model: Cat C9.3 ACERT
- Gross Power: 213 hp (159 kW)
- Net Power (ISO 9249): 185 hp (138 kW)
- Displacement: 537 in³ (8.8 L)
Weights
- Operating Weight: 44,418 lbs (20,150 kg)
- Shipping Weight: 36,974 lbs (16,780 kg)
Dimensions
- Length of Track on Ground: 113.1 in (2,874 mm)
- Ground Clearance: 15.6 in (396 mm)
- Width Over Tracks: 8 ft (2,438 mm)
- Height to Top of Cab: 10.5 ft (3,200 mm)
Undercarriage
- Track Gauge: 78 in (1,981 mm)
- Number of Track Rollers per Side: 7
- Number of Shoes per Side: 41
- Standard Shoe Width: 22 in (560 mm)

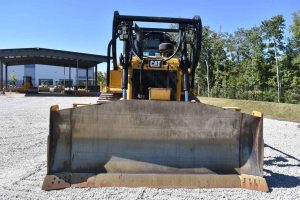

Blades
- Blade Type: SU (Semi-Universal)
- Blade Width: 13.7 ft (4,175 mm)
- Blade Height: 45 in (1,143 mm)
- Blade Capacity: 5.2 yd³ (4.0 m³)
Transmission
- Type: Powershift
- Number of Forward Gears: 3
- Number of Reverse Gears: 3
- Max Speed – Forward: 7.2 mph (11.6 km/h)
- Max Speed – Reverse: 9.1 mph (14.6 km/h)
Hydraulic System
- Relief Valve Pressure: 3,147 psi (21,700 kPa)
- Pump Flow Capacity: 49.9 gal/min (189 L/min)
Service Refill Capacities
- Fuel Tank: 112 gal (424 L)
- Cooling System: 20.3 gal (77 L)
- Engine Crankcase: 7.4 gal (28 L)
- Power Train: 38.5 gal (146 L)
- Hydraulic Tank: 13.6 gal (51.5 L)
