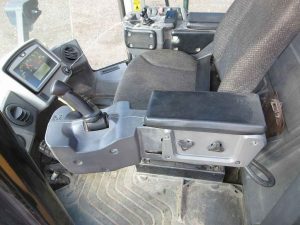

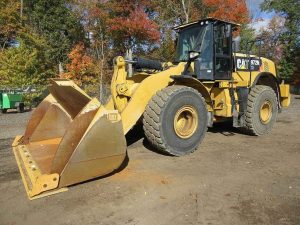

CATERPILLAR C9.3 ACERT 6 CYL TURBO DIESEL, CAB WITH HEAT, A/C, STEREO, AUTOSHIFT, RIDE CONTROL, REARVIEW CAMERA, JOYSTICK STEER, 26.5R25 MAXAM RADIAL RUBBER, GP BUCKET WITH BOCE, METER READS 15927 HOURS, 1029 IDLE HOURS, 4428 NEUTRAL HOURS, S/N CAT0972MVEDW00309
Engine
- Model: Cat C9.3 ACERT
- Gross Power: 337 hp (251 kW)
- Net Power: 299 hp (223 kW)
- Displacement: 568 in³ (9.3 L)
- Peak Gross Torque: 1,275 lb-ft (1,728 N·m) at 1,200 rpm
Weights
- Operating Weight: 54,871 lbs (24,896 kg)
Performance
- Bucket Capacity Range: 4.19 to 13.0 yd³ (3.20 to 9.94 m³)
- Breakout Force: 44,075 lbs (196 kN)
- Static Tipping Load (Full Turn): 35,626 lbs (16,297 kg)
- Maximum Travel Speed: 24.5 mph (39.5 km/h)
Hydraulics
- Implement System – Maximum Pump Output: 95 gal/min (360 L/min)
- Implement System – Maximum Operating Pressure: 4,496 psi (31,000 kPa)
Dimensions
- Height to Top of ROPS: 11.75 ft (3.58 m)
- Overall Length (without bucket): 26.67 ft (8.13 m)
- Wheelbase: 11.67 ft (3.56 m)
- Ground Clearance: 1.42 ft (0.43 m)
- Width over Tires: 9.92 ft (3.02 m)
Features
- Transmission: Continuously Variable Transmission (CVT)
- Emission Standards: U.S. EPA Tier 4 Final / EU Stage IV
- Operator Cab: ROPS/FOPS certified with sound suppression
- Hydraulic System: Load-sensing with variable displacement piston pump
- Cooling System: Next generation modular radiator with on-demand fan
