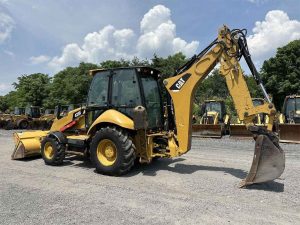

Enclosed Cab, Heat, 4WD, Extended-hoe, 24” Backhoe Digging Bucket, Auxiliary Hydraulics
Engine
- Model: Cat C4.4 ACERT
- Gross Power: 102 hp (76 kW)
- Net Power: 93 hp (69 kW)
- Displacement: 268.6 in³ (4.4 L)
- Fuel Capacity: 44 gal (167 L)
Weights
- Operating Weight (2WD): 15,395 lbs (6,983 kg)
- Operating Weight (4WD): 24,251 lbs (11,000 kg)
Performance
- Backhoe Dig Depth (Standard): 14 ft 4 in (4.36 m)
- Backhoe Dig Depth (Extendable Stick): 17 ft 11 in (5.41 m)
- Loader Lift Capacity at Full Height: 7,238 lbs (3,283 kg)
- Bucket Breakout Force: 11,283 lbs (5,118 kg)
- Travel Speed (Maximum): 25 mph (40 km/h)
Hydraulics
- Pump Flow Capacity: 43.1 gal/min (163 L/min)
- System Relief Pressure: 3,553 psi (24.5 MPa)
Dimensions
- Transport Length: 23 ft 6 in (7.16 m)
- Transport Width: 7 ft 10 in (2.39 m)
- Transport Height: 11 ft 9 in (3.58 m)
- Wheelbase: 7 ft 3 in (2.22 m)
- Ground Clearance: 1 ft 2 in (0.37 m)
