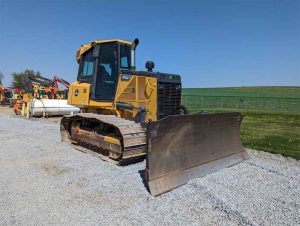

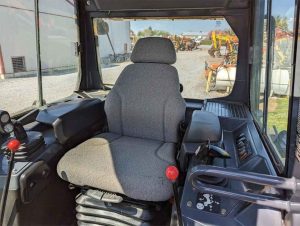

Heat, A/C, Radio, 120″ Six-Way Blade, 22″ Pads

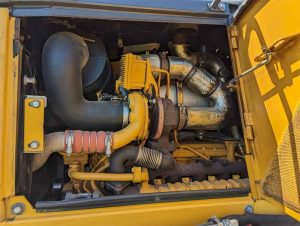

Engine
- Model: John Deere PowerTech™ PVX 6068
- Emissions Certification: EPA Interim Tier 4/EU Stage IIIB
- Displacement: 6.8 L (414 cu. in.)
- Net Power: 93 kW (125 hp) at 1,800 rpm
- Peak Torque: 563 Nm (416 lb.-ft.) at 1,300 rpm
- Air Cleaner: Dual-stage dry tube with tangential unloader
Powertrain
- Transmission: Dual-path hydrostatic drive with load-sensing feature

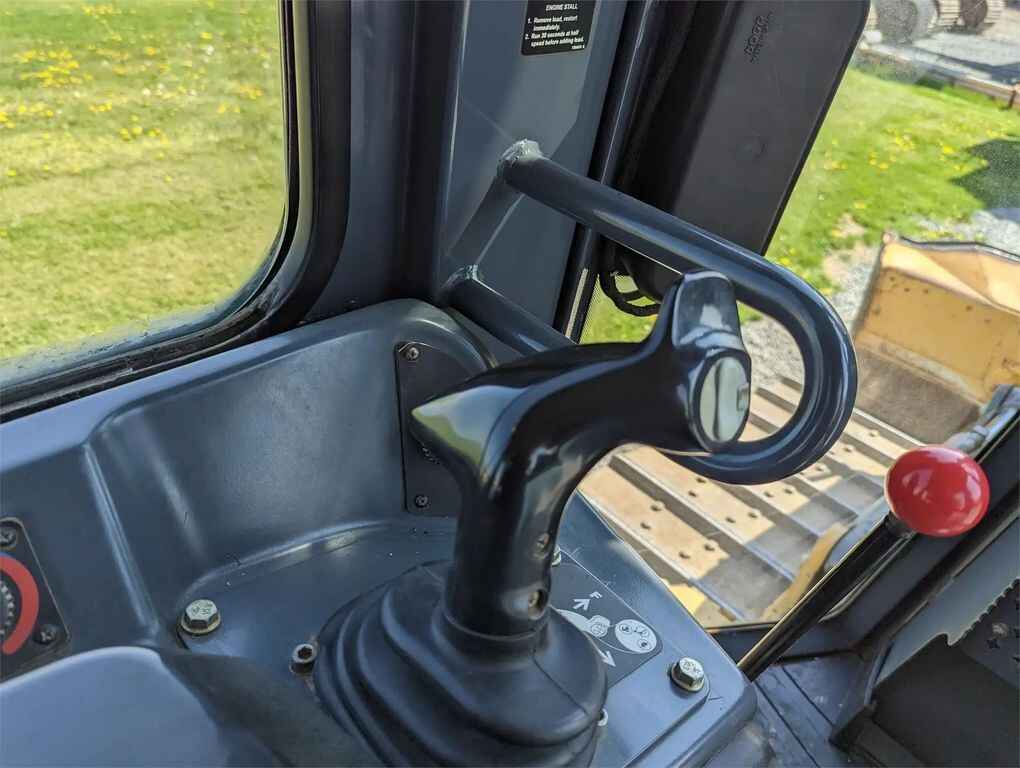

- Steering: Single-lever steering with full power turns and counter-rotation
- Final Drives: Triple-reduction, mounted independently of track frames
- Travel Speeds (Forward/Reverse): 8.9 km/h (5.5 mph)
Undercarriage
- Track Gauge: 1,778 mm (70 in.)
- Grouser Width: 560 mm (22 in.)
- Track Length on Ground: 2,590 mm (102 in.)
- Ground Contact Area: 29,946 cm² (4,487 sq. in.)
- Ground Pressure: 46.4 kPa (6.74 psi)
- Number of Shoes (each side): 39
- Number of Track Rollers (each side): 7
Hydraulics
- Type: Open-center system with fixed-displacement gear pump
- Pump Flow: 95 L/min (25 gpm)
- System Relief Pressure: 22,063 kPa (3,200 psi)
Capacities
- Fuel Tank: 284 L (75 gal.)
- Cooling System: 33.4 L (8.8 gal.)
- Engine Oil with Filter: 24.6 L (6.5 gal.)
- Transmission Reservoir with Filter: 68.9 L (18.2 gal.)
- Hydraulic Reservoir and Filter: 53.8 L (14.2 gal.)
Operating Weights
- Base Weight (with ROPS, full fuel, and 79-kg operator): 13,710 kg (30,225 lb.)
- Cab with Pressurizer and HVAC: Adds 288 kg (635 lb.)
Dimensions
- Overall Height to Roof: 2,936 mm (9 ft. 8 in.)
- Ground Clearance: 393 mm (15.5 in.)
- Overall Length (without attachments): 4,815 mm (15 ft. 9 in.)
