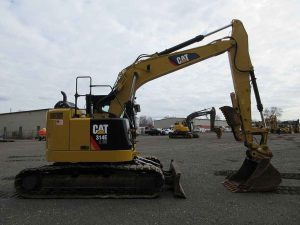

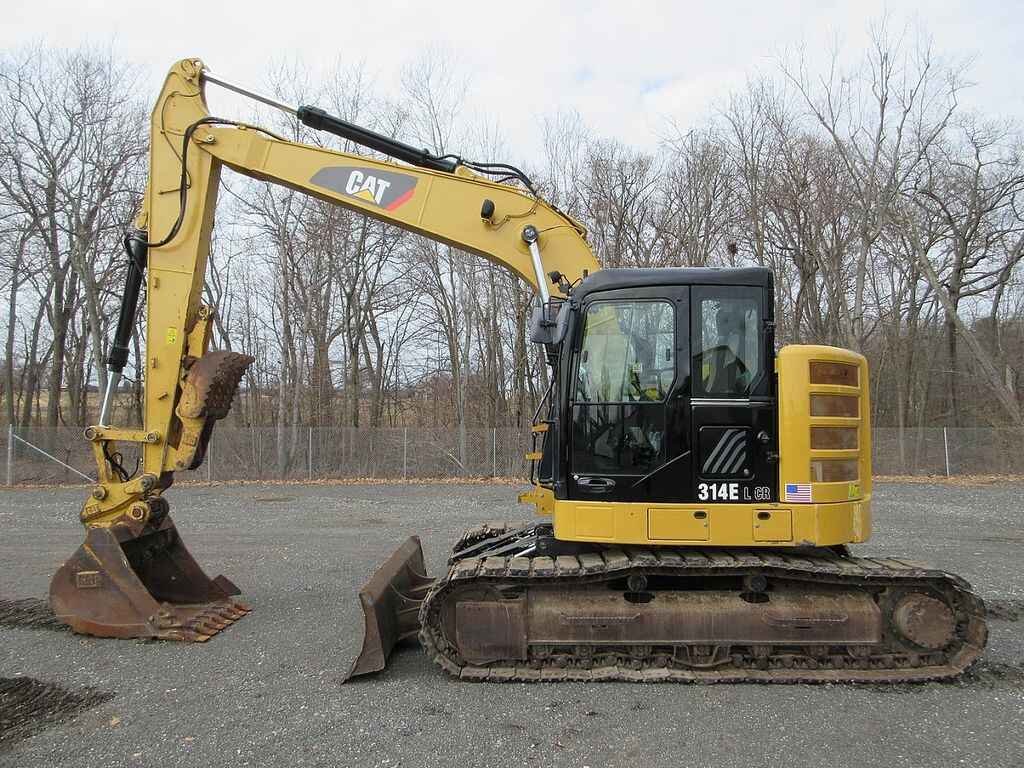

Caterpillar C4.4 Acert 4 cyl turbo diesel, cab with heat, A/C, stereo, rearview camera, auto idle, 2 speed travel, backfill blade, 20″ track pads, 8′ 6″ wide, aux hyd, 9′ 10″ stick, thumb, hyd coupler, bucket with teeth, meter reads 8831 hours, S/N CAT0314ELZJT00770
Engine
- Model: Cat® C4.4 ACERT™
- Net Power: 89 hp (66 kW)
- Displacement: 269.3 in³ (4.4 L)
- Emissions: Meets U.S. EPA Tier 4 Interim and EU Stage IIIB standards
Weights
- Operating Weight: 32,600 lbs (14,787 kg)
Performance
- Maximum Digging Depth: 19 ft 6 in (5.94 m)
- Maximum Reach at Ground Level: 28 ft 4 in (8.64 m)
- Bucket Digging Force: 22,950 lbf (102 kN)
- Stick Digging Force: 15,200 lbf (68 kN)
- Swing Speed: 11.5 rpm
Hydraulics
- Main System Maximum Flow: 67 gal/min (254 L/min)
- Maximum Pressure – Equipment: 4,420 psi (30,500 kPa)
- Maximum Pressure – Travel: 5,080 psi (35,000 kPa)
- Maximum Pressure – Swing: 3,340 psi (23,000 kPa)
Dimensions
- Transport Length: 24 ft 5 in (7.45 m)
- Transport Width: 8 ft 6 in (2.59 m)
- Transport Height: 9 ft 10 in (3.0 m)
- Tail Swing Radius: 5 ft 0 in (1.53 m)
- Ground Clearance: 1 ft 5 in (0.44 m)
Capacities
- Fuel Tank: 47.0 gal (178 L)
- Cooling System: 7.4 gal (28 L)
- Engine Oil: 3.6 gal (13.5 L)
- Hydraulic System (including tank): 42.3 gal (160 L)
- Hydraulic Tank: 22.2 gal (84 L)
