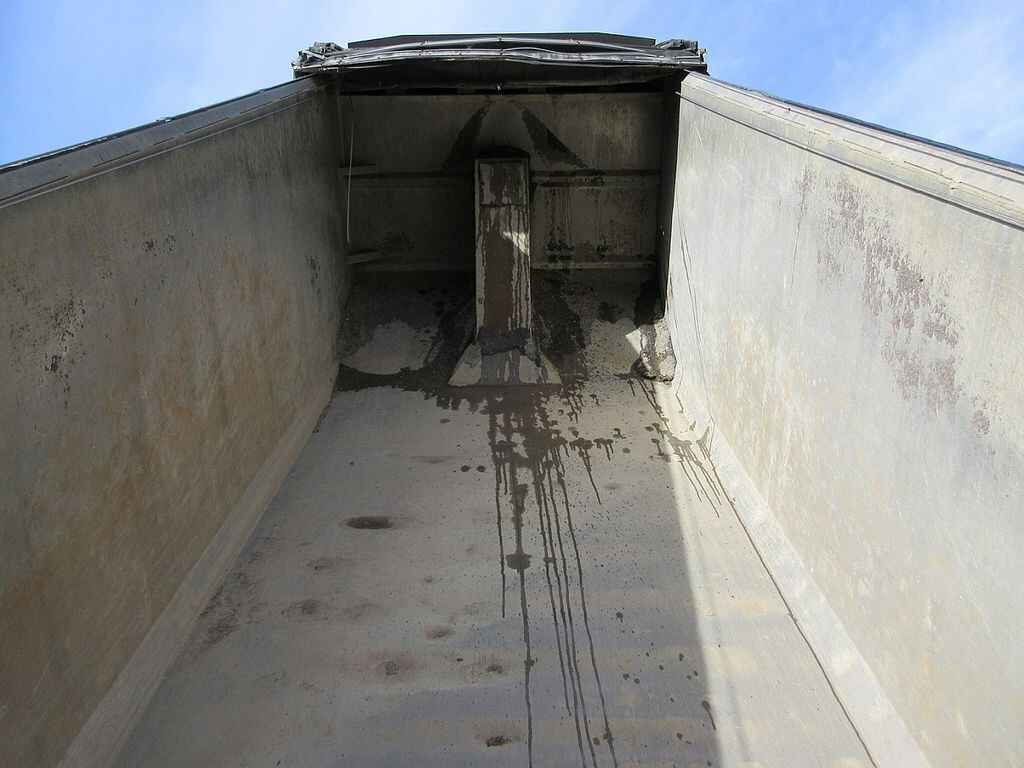

CATERPILLAR CT13 6 CYL TURBO DIESEL, ENGINE BRAKE, 8LL, A/C, CC, PW, PDL, PM, 19480 FRONT, 20K STEERABLE PUSHER AXLE, 46K REARS, DOUBLE FRAME, AIR RIDE, 18′ ALUMINUM DUMP BODY, SLIDING LOAD COVER, METER READS 348925 MILES, VIN 1HTJGTKT9DJ153472
Engine
- Model: Cat CT13
- Gross Power: 475 hp (354 kW)
- Displacement: 12.5 L (758 in³)
- Bore: 5.2 in (132 mm)
- Stroke: 6.8 in (172 mm)
Transmission
- Model: Cat CX31® Automatic
- Number of Forward Gears: 6
- Number of Reverse Gears: 1
- Maximum Input Power: 550 hp (410 kW)
Dimensions
- Bumper to Back of Cab (BBC): 116 in (2,946 mm)
- Overall Width: 37.2 in (945 mm)
- Overall Height: 49.2 in (1,250 mm)
Chassis
- Frame Rail Size: 12.0 in (305 mm)
- Yield Strength: 120,000 psi
- Frame Rail Thickness: 0.375 in (9.5 mm)
Axles
- Front Axle Capacity: 12,000–23,000 lbs (5,443–10,433 kg)
- Rear Axle Capacity: 40,000–58,000 lbs (18,144–26,308 kg)
Suspension
- Front Suspension: Multileaf, shackle type, single or two-stage spring
- Rear Suspension: Hendrickson HaulMaax, 40,000 & 46,000 lb capacity walking beam with rubber end bushings
Brakes
- System: Dual air system for straight truck and tractor applications
- ABS: Bendix anti-lock brake system; available full vehicle wheel control system – 4-channel
Electrical System
- Batteries: Caterpillar Series 31, 3 or 4 12-volt, 2130CCA to 4000CCA
- Alternators: Bosch or Leece-Neville, 160–320 Amp, 12 Volt
Fuel Tanks
- Capacities: 60, 80, 100, & 120-gallon
- Material: Aluminum alloy construction
