Vibratory, 4 cyl Caterpillar turbo diesel, ROPS, water system, 67″ drums, Versa Vibe, meter reads 4362 hours, S/N CATCB54BJLXD00119
Engine
- Model: Cat C4.4 with ACERT Technology
- Gross Power: 133.2 hp (99 kW)
- Fuel Tank Capacity: 55 gal (208 L)
Weights
- Operating Weight (with ROPS/FOPS): 23,523 lbs (10,670 kg)
- Maximum Weight at Front Drum: 11,706 lbs (5,310 kg)
- Maximum Weight at Rear Drum: 11,817 lbs (5,360 kg)
Performance
- Standard Compaction Width: 67 in (1,700 mm)
- Drum Diameter: 47 in (1,198 mm)
- Travel Speed (Maximum): 7.5 mph (12 km/h)
- Turning Radius (Inside Drum Edge): 14.3 ft (4,378 mm)
Vibratory System
- Frequency: 2,580/3,800 vpm (43/63.3 Hz)
- Nominal Amplitude (High): 0.032 in (0.82 mm)
- Nominal Amplitude (Low): 0.012 in (0.32 mm)
- Centrifugal Force per Drum (Maximum): 24,055 lbs (107 kN)
- Centrifugal Force per Drum (Minimum): 6,407 lbs (28.5 kN)
Dimensions
- Overall Length: 177 in (4,500 mm)
- Overall Width: 74 in (1,880 mm)
- Height (with ROPS/FOPS): 117 in (2,970 mm)
- Wheelbase: 130 in (3,300 mm)
- Ground Clearance: 10 in (268 mm)
- Curb Clearance: 37 in (934 mm)
Features
- Water Spray Tank Capacity: 221 gal (836 L)
- Vibration Selection: Independent per drum, front only, rear only, both

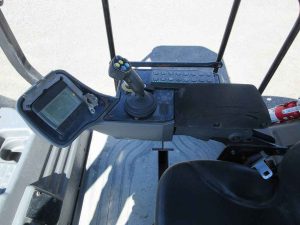

- Operator Station: 180° seat positioning with optional 360° seating
- Steering: Handwheel steering technology
