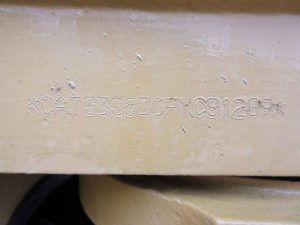

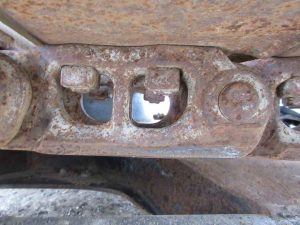

4 cyl turbo diesel, cab with heat, A/C, stereo, auto idle, 2 speed travel, 18″ track pads, backfill blade, swing boom, aux hyd, 7′ 4″ stick, hyd coupler, bucket with teeth, meter reads 3940 hours, S/N CAT0308DCFYC01209
Engine
- Model: Mitsubishi 4M40 TL
- Net Power: 55.6 hp (41.5 kW)
- Gross Power: 57.6 hp (43.0 kW)
- Displacement: 172.7 in³ (2.83 L)
- Rated Speed: 2,000 rpm
Weights
- Operating Weight: 17,306 lbs (7,850 kg)
Performance
- Maximum Digging Depth: 13 ft 5 in (4.1 m)
- Maximum Reach at Ground Level: 20 ft 4 in (6.2 m)
- Maximum Cutting Height: 24 ft 1 in (7.3 m)
- Maximum Loading Height: 17 ft 5 in (5.3 m)
- Tail Swing Radius: 4 ft 3 in (1.3 m)
- Travel Speed (High): 3.1 mph (5.0 km/h)
- Travel Speed (Low): 1.9 mph (3.1 km/h)
Hydraulics
- Operating Pressure (Equipment): 4,061 psi (280 bar)
- Operating Pressure (Travel): 4,641 psi (320 bar)
- Hydraulic Pump Flow Capacity: 71.9 gal/min (272 L/min)
Dimensions
- Shipping Length: 19 ft 1 in (5.8 m)
- Shipping Height: 8 ft 6 in (2.6 m)
- Width to Outside of Tracks: 7 ft 7 in (2.3 m)
- Ground Clearance: 1 ft 3 in (0.4 m)
- Height to Top of Cab: 8 ft 6 in (2.6 m)
