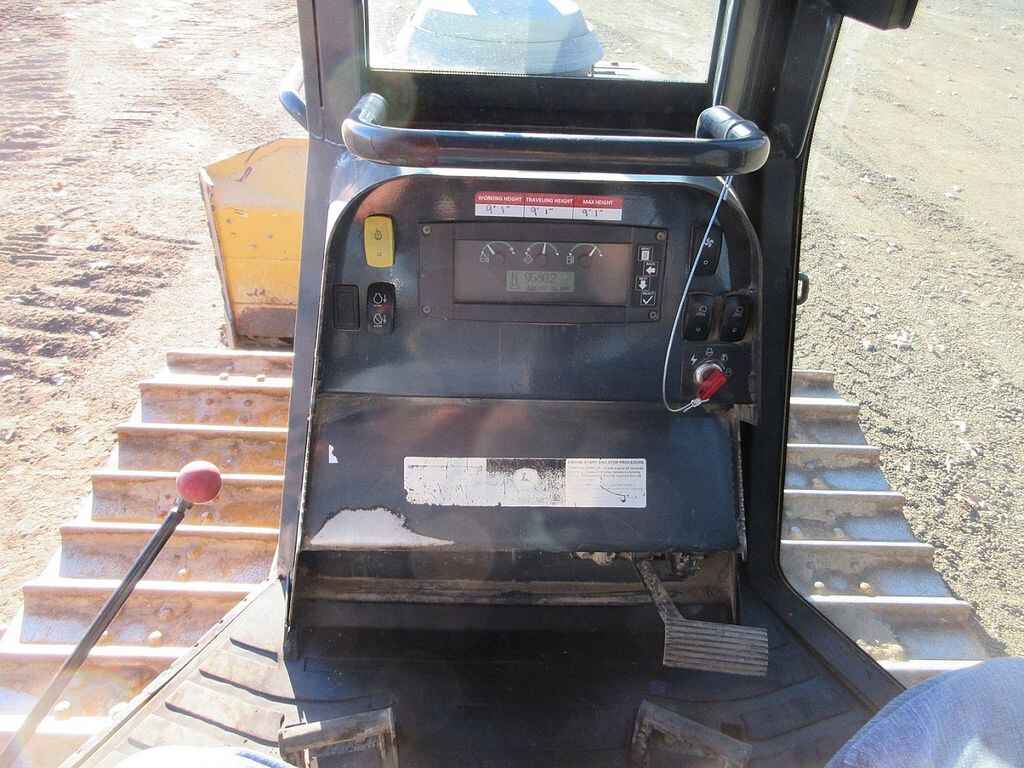

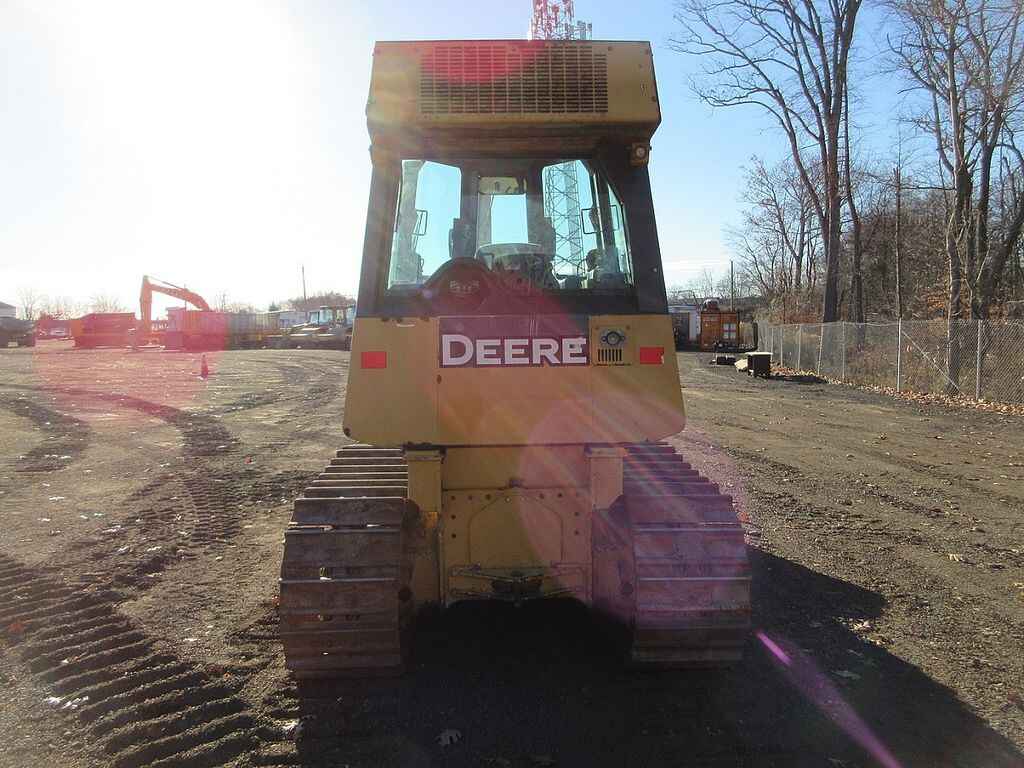

4 CYL JOHN DEERE TURBO DIESEL, CAB WITH HEAT, A/C, STEREO, HYSTAT, VPAT BLADE WITH BOCE, METER READS 9580 HOURS, S/N T0650JX175313
Engine
- Model: John Deere 4045T
- Net Power: 90 hp (67 kW) @ 2,200 rpm
- Displacement: 276 cu in (4.5 L)
- Max Torque: 306 lb-ft (415 Nm) @ 1,200 rpm
- Aspiration: Altitude-compensating turbocharger
Dimensions
- Length with Blade: 13.96 ft (4,254 mm)
- Width Over Tracks: 6.59 ft (2,006 mm)
- Height to Top of Cab: 9.09 ft (2,768 mm)
- Track Length on Ground: 7.67 ft (2,337 mm)
- Ground Clearance: 1.2 ft (363 mm)

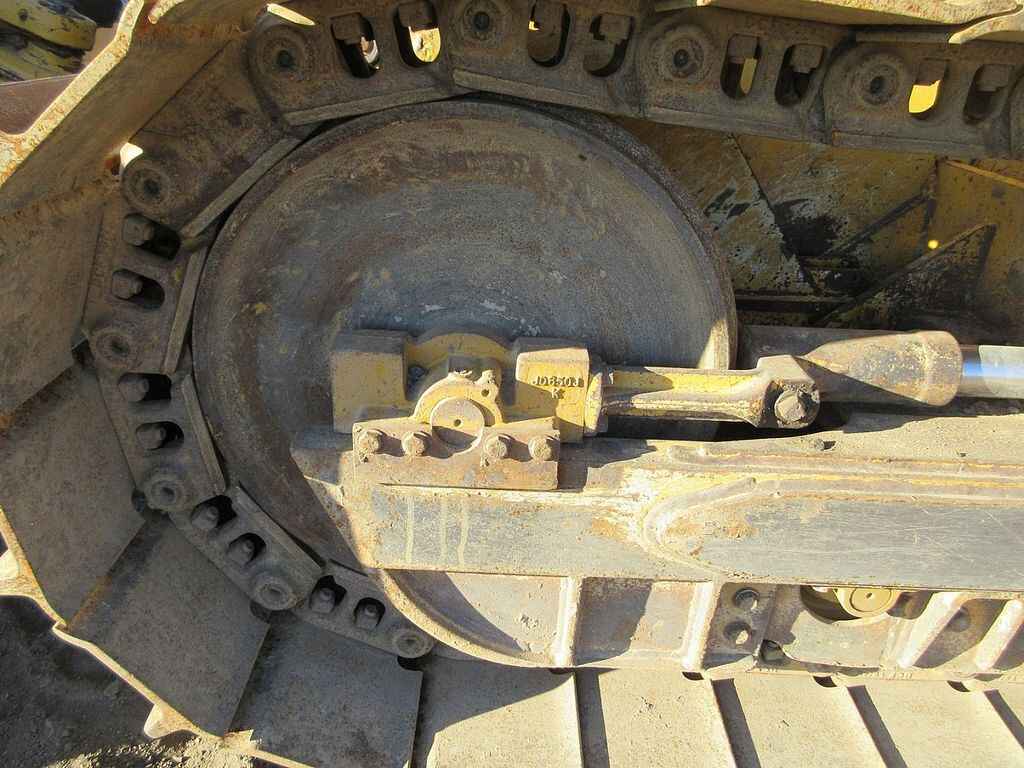

Undercarriage
- Track Gauge: 5.09 ft (1,550 mm)
- Standard Shoe Size: 18 in (457 mm)
- Number of Track Rollers per Side: 7
- Number of Shoes per Side: 40
- Ground Contact Area: 3,312 in² (2.14 m²)
- Ground Pressure: 5.6 psi (38.6 kPa)
- Track Pitch: 6.73 in (170 mm)
Operational
- Operating Weight: 18,640 lbs (8,455 kg)
- Fuel Capacity: 47 gal (178 L)
- Cooling System Fluid Capacity: 4.3 gal (16 L)
- Engine Oil Capacity: 3.7 gal (14 L)
- Hydraulic Fluid Capacity: 8.5 gal (32.2 L)
- Powertrain Fluid Capacity: 11.3 gal (42.7 L)
- Final Drives Fluid Capacity: 1.8 gal (6.6 L)
- Operating Voltage: 12 V
- Alternator Supplied Amperage: 65 amps
Transmission
- Type: Hydrostatic
- Max Speed – Forward: 5 mph (8.1 km/h)
- Max Speed – Reverse: 5 mph (8.1 km/h)
Hydraulic System
- Pump Type: Gear
- Relief Valve Pressure: 3,000 psi (20,670 kPa)
- Pump Flow Capacity: 15 gal/min (57 L/min)
Standard Blade
- Width: 8.8 ft (2,667 mm)
- Height: 36.8 in (933 mm)
- Capacity: 2.7 yd³ (2 m³)
- Blade Angle (Both Directions): 22.2 degrees
- Cutting Depth: 19.7 in (500 mm)
