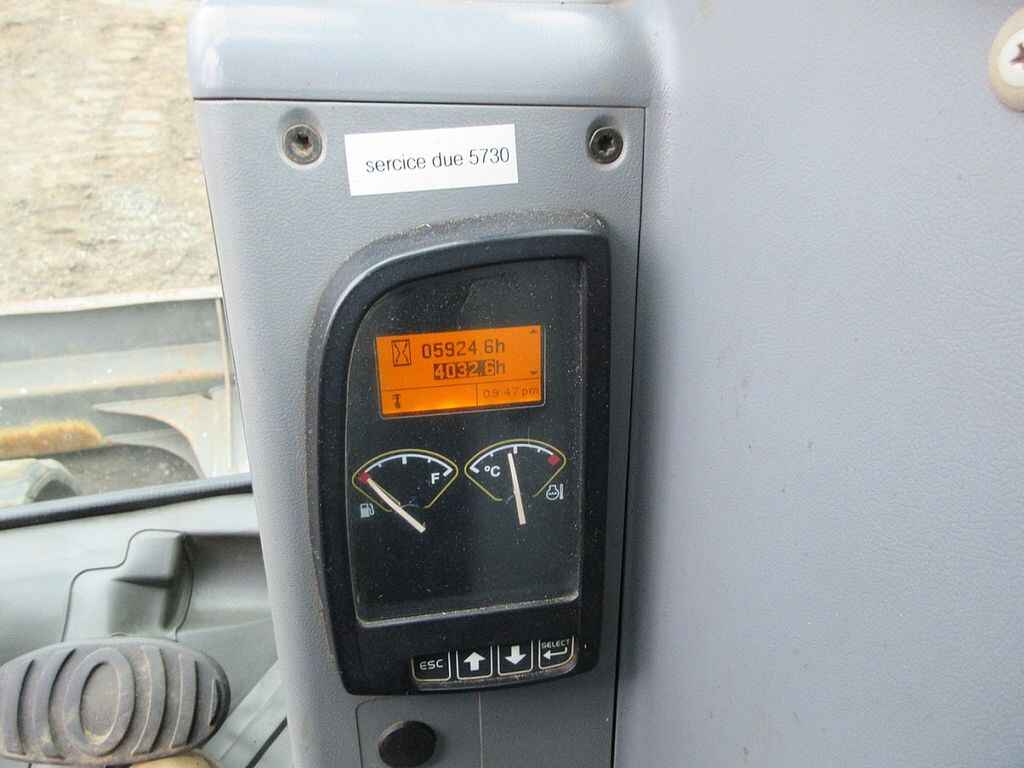

4 cyl Volvo diesel, cab with heat, A/C, stereo, auto idle, 2 speed travel, backfill blade, swing boom, aux hyd, hyd thumb, 5′ 7″ stick, hyd coupler, bucket with teeth, meter reads 5924 hours, S/N VCE0EC88K00014155
Engine
- Model: Volvo D3.4
- Gross Power: 59 hp (44 kW)
- Net Power: 56.8 hp (42.4 kW)
- Displacement: 202.5 in³ (3.3 L)
- Number of Cylinders: 4
- Aspiration: Natural
Performance
- Operating Weight: 18,040 lbs (8,183 kg)
- Maximum Digging Depth: 13 ft 8 in (4.17 m)
- Maximum Reach at Ground Level: 22 ft 6 in (6.86 m)
- Maximum Cutting Height: 22 ft 1 in (6.74 m)
- Maximum Loading Height: 15 ft 11 in (4.86 m)
- Maximum Vertical Wall Digging Depth: 9 ft 6 in (2.89 m)
- Tail Swing Radius: 3 ft 11 in (1.2 m)
- Ground Clearance: 1 ft 3 in (0.39 m)
Hydraulics
- Hydraulic Pump Flow Capacity: 46 gal/min (174 L/min)
- Hydraulic System Relief Valve Pressure: 4,354 psi (30 MPa)
Dimensions
- Overall Length: 21 ft 1 in (6.41 m)
- Overall Width: 7 ft 7 in (2.3 m)
- Overall Height: 8 ft 8 in (2.68 m)
- Track Gauge: 6 ft 1 in (1.85 m)
- Shoe Size: 17.7 in (450 mm)
Capacities
- Fuel Tank: 29.1 gal (110 L)
- Hydraulic System Fluid Capacity: 37 gal (140 L)
- Engine Oil Capacity: 3.1 gal (11.5 L)
- Cooling System Fluid Capacity: 1.9 gal (7 L)
Undercarriage
- Number of Track Rollers per Side: 6
- Number of Carrier Rollers per Side: 1
- Ground Pressure: 5.1 psi (35.2 kPa)
- Max Travel Speed: 3.2 mph (5.1 km/h)
