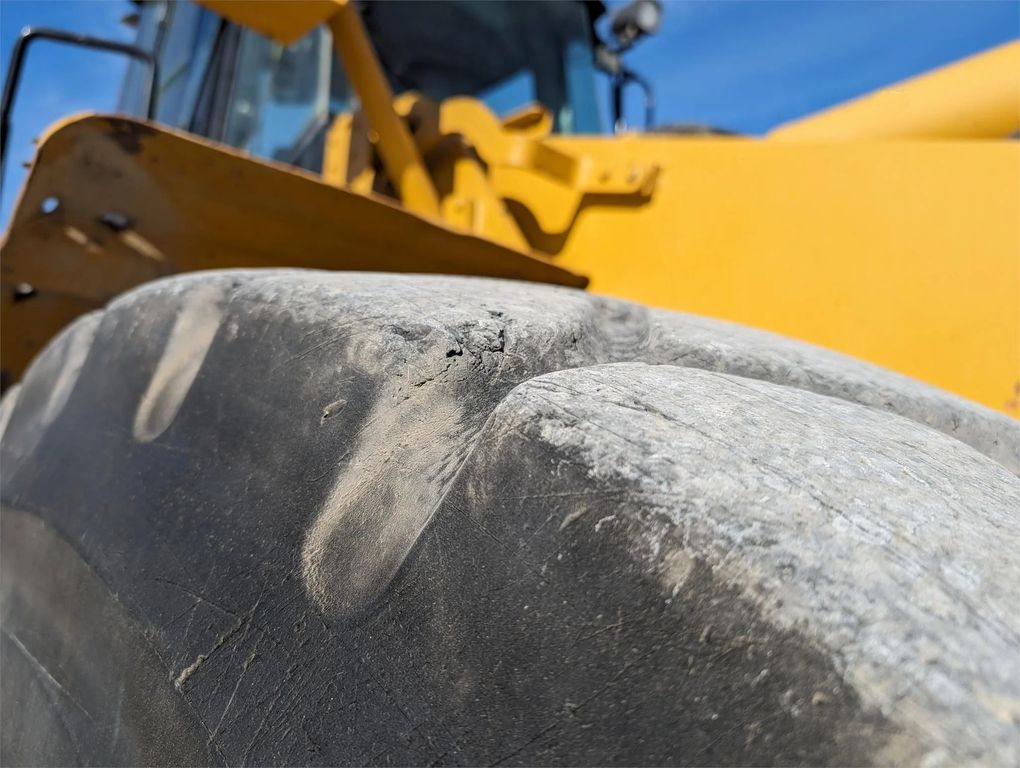

Heat, A/C, Radio, 26.5R25 Tires, 5.75 Yd. Bucket
Engine
- Model: Cat® C13 ACERT™
- Gross Power: 311 hp (232 kW)
- Net Power: 287 hp (214 kW)
- Displacement: 763 in³ (12.5 L)
- Peak Torque: 983 lb-ft (1,332 N·m) at 1,400 rpm
Weights
- Operating Weight: 55,451 lbs (25,148 kg)
Performance
- Bucket Capacity (Heaped): 6 yd³ (4.6 m³)
- Bucket Width: 10 ft 7 in (3,220 mm)
- Breakout Force: 51,750 lbs (230 kN)
- Static Tipping Load (Full Turn): 37,271 lbs (16,903 kg)
- Dump Clearance at Max Lift: 10 ft 7 in (3,228 mm)
Dimensions
- Length with Bucket on Ground: 30 ft (9,144 mm)
- Width over Tires: 9 ft 8 in (2,946 mm)
- Height to Top of Cab: 11 ft 10 in (3,606 mm)
- Ground Clearance: 1 ft 7 in (495 mm)
- Wheelbase: 11 ft 4 in (3,450 mm)
Transmission
- Type: Powershift
- Number of Forward Gears: 4
- Number of Reverse Gears: 4
- Max Speed – Forward: 22.9 mph (36.9 km/h)
- Max Speed – Reverse: 24 mph (38.8 km/h)
Hydraulic System
- Hydraulic Flow: 81 gal/min (305 L/min)
- Relief Valve Setting: 3,000 psi (20,684 kPa)
Service Refill Capacities
- Fuel Tank: 100.4 gal (380 L)
- Cooling System: 10.3 gal (39 L)
- Engine Oil: 9.3 gal (35 L)
- Hydraulic Tank: 29 gal (110 L)
- Transmission: 9.3 gal (35 L)
- Differentials and Final Drives – Front: 16.9 gal (64 L)
- Differentials and Final Drives – Rear: 16.9 gal (64 L)
