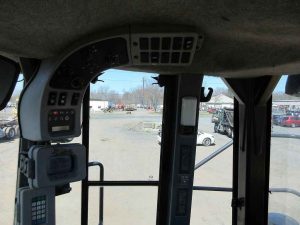

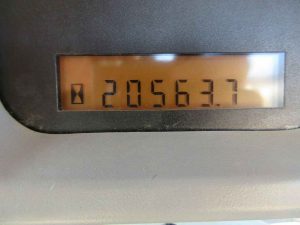

Series II, Caterpillar 3406 6 cyl turbo diesel, cab with heat, A/C, stereo, autoshift, scale, command steer, 29.5R25 radial rubber, autolube, GP bucket with BOCE, meter reads 20563 hours, S/N CAT0980GKAWH01043
Engine
- Model: Cat 3406C DITA
- Net Power: 323 hp (241 kW)
- Gross Power: 300 hp (224 kW)
- Displacement: 14.6 L (891 in³)
Weights
- Operating Weight: 65,638 lbs (29,773 kg)
- Static Tipping Load (Full Turn): 40,005 lbs (18,146 kg)
Performance
- Bucket Capacity (Heaped): 5.5 yd³ (4.2 m³)
- Breakout Force: 47,277 lbs (21,445 kg)
- Dump Clearance at Max Raise: 10.74 ft (3.27 m)
- Top Forward Speed: 23.3 mph (37.5 km/h)
- Top Reverse Speed: 26.6 mph (42.8 km/h)
Hydraulics
- Hydraulic Cycle Time (Total): 12.2 seconds
- Raise Time: 6.8 seconds
- Dump Time: 2.0 seconds
- Lowering Time (Empty, Float Down): 3.4 seconds
Dimensions
- Length with Bucket on Ground: 31.06 ft (9.46 m)
- Width over Tires: 10.67 ft (3.25 m)
- Height to Top of Cab: 12.31 ft (3.75 m)
- Ground Clearance: 1.54 ft (0.47 m)
- Bucket Width: 11.31 ft (3.45 m)
- Reach at Max Lift and Dump: 5.07 ft (1.55 m)
Capacities
- Fuel Tank: 124 gal (469 L)
- Hydraulic System (Including Tank): 55 gal (208 L)
- Hydraulic Tank: 33.1 gal (125 L)
- Cooling System: 20.9 gal (79 L)
- Crankcase: 10.1 gal (38 L)
- Transmission: 16.4 gal (62 L)
- Differential – Final Drives (Front): 23 gal (87 L)
- Differential – Final Drives (Rear): 21.4 gal (81 L)
Transmission
- Number of Forward Gears: 4
- Number of Reverse Gears: 4
- Forward – 1: 4.4 mph (7.1 km/h)
- Forward – 2: 7.7 mph (12.4 km/h)
- Forward – 3: 13.5 mph (21.7 km/h)
- Forward – 4: 23.3 mph (37.5 km/h)
- Reverse – 1: 5.0 mph (8.0 km/h)
- Reverse – 2: 8.7 mph (14.0 km/h)
- Reverse – 3: 15.3 mph (24.6 km/h)
- Reverse – 4: 26.6 mph (42.8 km/h)
