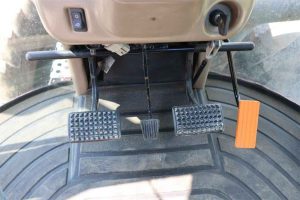

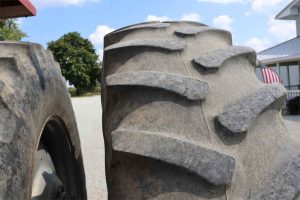

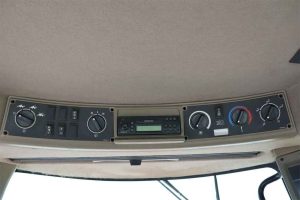

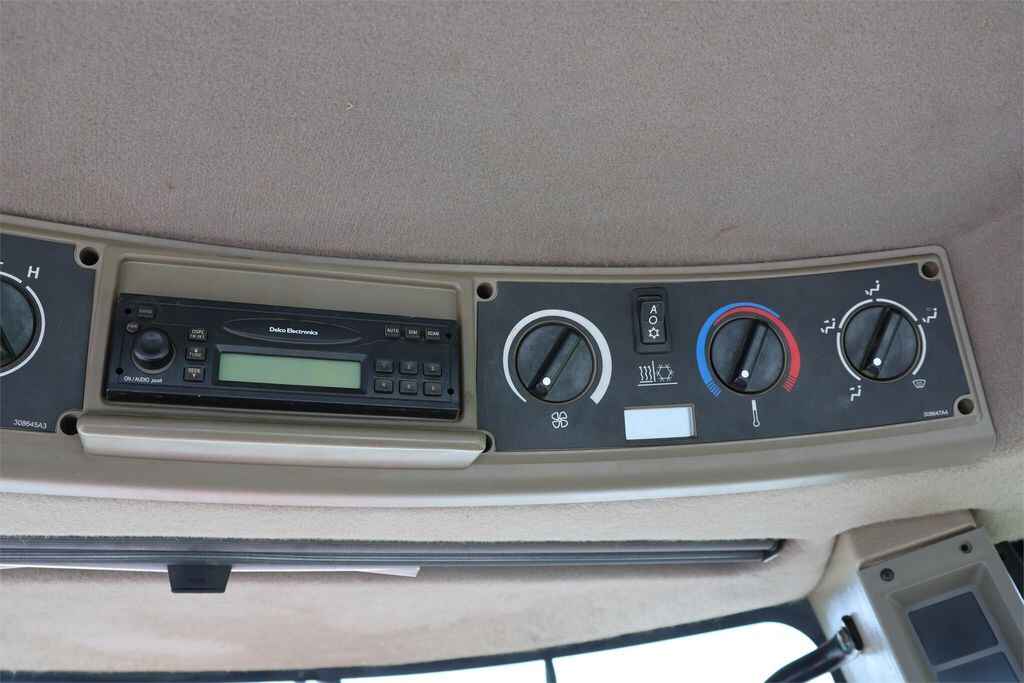

BB, 4 hyd. outlets, 20.8R42 duals, foot throttle, buddy seat, radio
Engine
- Model: CDC 6TAA-9004
- Type: Turbocharged aftercooled diesel
- Cylinders: 6
- Displacement: 540 in³ (8.9 L)
- Gross Power: 325 hp (242.4 kW)
- Rated RPM: 2000
- Fuel Capacity: 200 gal (757.0 L)
Transmission
- Type: Full Power Shift / Fully Synchronized
- Gears: 16 forward, 2 reverse
Dimensions
- Wheelbase: 139 in (353 cm)
- Length: 295.5 in (750 cm)
- Width (frame): 36.5 in (92 cm)
- Height: 145.2 in (368 cm)
- Operating Weight: 31,925 lbs (14,481 kg)
Hydraulics
- Type: Pressure Flow Compensated (PFC)
- Pump Flow: 40 gpm (151.4 L/min)
- Optional Pump Flow: 55 gpm (208.2 L/min)
- Rear Valves: 4 to 7
Power Take-off (PTO)
- Rear PTO: Independent (optional)
- Rear RPM: 1000
3-Point Hitch
- Rear Type: IVN/III
- Rear Lift Capacity: 14,500 lbs (6,577 kg)
Electrical
- Ground: Negative
- Battery Volts: 12
